3-Pole Load Break Switch | 40A Rated | Front Mount | IP20 by NHP
3-pole load break switch with 40A rating and robust plastic housing—ideal for industrial machinery control and commercial electrical panels. Built for reliable load breaking, with front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

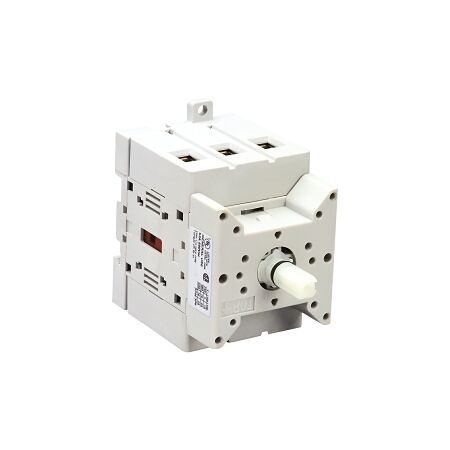

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 40A
Brand: NHP
SKU: LE7401753
Alternatively Known As: L7 Load Break Switch, Off-load Switch, Panel Mount Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 15 kW
- Rated Operation Current IE at AC 21A 690 V: 40 A
- Rated Operation Current IE at AC 1 690 V: 40 A
- Ithe Thermal Current Enclosed: 50 A
- Ith Thermal Current Open: 63 A
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size Rigid Cable: 2.5-16 mm²
- Wire Conductor Size Flex Cable: 2.5-25 mm²
- Degree of Protection IP Front Side: IP20
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 200000 cycles
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 72mm x 74mm x 54mm
- Weight: 1.5 kg
Key Features
- 3-pole design for reliable load breaking.
- Rated for 40A operation with a robust plastic housing.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and power distribution
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 40A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
