3 Pole Load Break Switch | 63A Rated | DIN Rail Mount | IP20 by NHP
3 pole load break switch with 63A rating and DIN rail mount—ideal for industrial and commercial electrical installations. Built for reliable switching, with IP20 protection and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

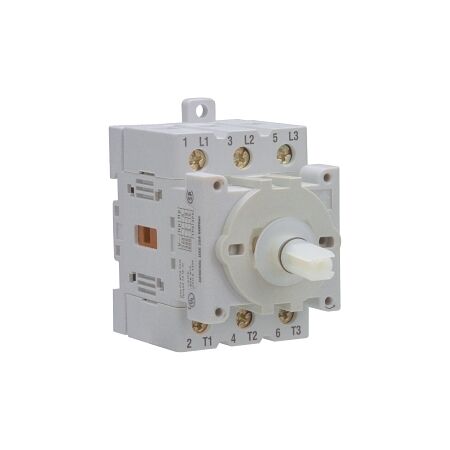

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 63A Base Mount
Brand: NHP
SKU: LA7631753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 18.5 kW
- Rated operation current (IE) at AC 21A 690V: 63 A
- Rated operation current (IE) at AC 1 690V: 63 A
- Thermal current (enclosed): 63 A
- Thermal current (open): 75 A
- Mounting method: DIN rail
- Wire conductor size (rigid cable): 2.5-16 mm²
- Wire conductor size (flex cable): 2.5-25 mm²
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 72mm x 73mm x 54mm
- Weight: 1.5 kg
Key Features
- 3-pole design for reliable switching.
- Rated for 63A operation with a robust plastic housing.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Can be used in commercial electrical installations.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 63A Base Mount is available now for immediate purchase, ideal for industrial and commercial electrical applications.
