3 Pole Load Break Switch | 80A Rated | Panel Mount | IP20 by NHP
3 pole load break switch with 80A rating and panel mount design—ideal for industrial and commercial applications. Built for robust performance, with IP20 protection and easy front mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

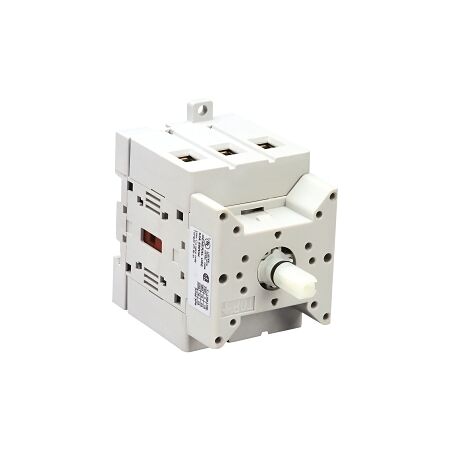

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 80A
Brand: NHP
SKU: LE7801753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off On Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 30 kW
- Rated operation current (IE) at AC 21A 690 V: 80 A
- Rated operation current (IE) at AC 1 690 V: 80 A
- Thermal current (enclosed): 80 A
- Thermal current (open): 100 A
- Number of auxiliary contacts (normally closed): 0
- Number of auxiliary contacts (normally open): 0
- Model: On/Off switch
- Material housing: Plastic
- Wire conductor size (rigid cable): 4-35 mm²
- Wire conductor size (flex cable): 4-50 mm²
- Degree of protection (IP front side): IP20
- Suitable for front mounting: Yes
- Complete device in housing: No
- With zero off position: Yes
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 90mm x 90mm x 72mm
- Weight: 1.5 kg
Key Features
- 3 pole design for versatile applications.
- Rated for 80A operation, ensuring robust performance.
- Front mounting method for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 80A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
