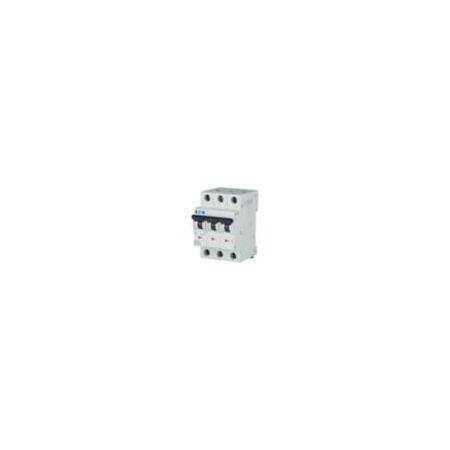

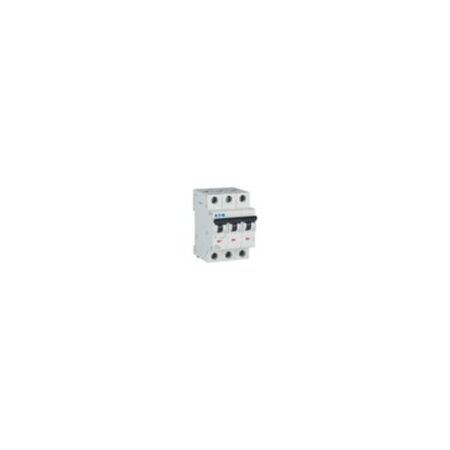

3-Pole Miniature Circuit Breaker | 2A Rated Current | C Tripping Characteristic | IP20 Protection by Eaton
This 3-pole miniature circuit breaker features a 2A rated current and C tripping characteristic—ideal for branch circuit protection in industrial and commercial applications. Built for safety and efficiency, it offers IP20 protection and is designed for easy installation on top-hat rails.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Miniature Circuit Breaker | 2A Rated Current | C Tripping Characteristic | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-278861
Alternatively Known As: FAZ-C2/3 MCB, Eaton FAZ Miniature Circuit Breaker, 3-pole 2A Circuit Breaker, xEffect FAZ MCB
Technical Specifications
- Number of poles: 3
- Tripping characteristic: C
- Rated current (In): 2 A
- Voltage rating AC: 240 V AC / 415 V AC
- Voltage rating DC: 60 V DC per pole
- Rated switching capacity: 10 kA to 15 kA depending on standard
- Frequency rating: 50-60 Hz
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Overvoltage category: III
- Pollution degree: 2
- Lifespan electrical: 10,000 operations
- Mounting method: Top-hat rail IEC/EN 60715
- Degree of protection: IP20 (IEC), IP40 when fitted
- Connectable conductor cross section: 1 mm² to 25 mm²
- Terminal protection: Finger and hand touch safe
- Dimensions (H x L x W): 75.5mm x 80mm x 54mm
- Weight: 0.34 kg
Key Features
- 3-pole miniature circuit breaker with C tripping characteristic
- Rated current: 2 A
- Rated operational voltage: 240 V AC / 415 V AC
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for solid and multi-wired conductors
- Mounting on top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Current limiting class 3
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Branch circuits protection
- Industrial and advanced commercial switchgear applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- High electrical efficiency reduces energy loss during operation
- Durable design extends product lifespan, reducing waste
- Complies with RoHS, limiting hazardous substances
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xEffect FAZ 3-pole 2A miniature circuit breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
