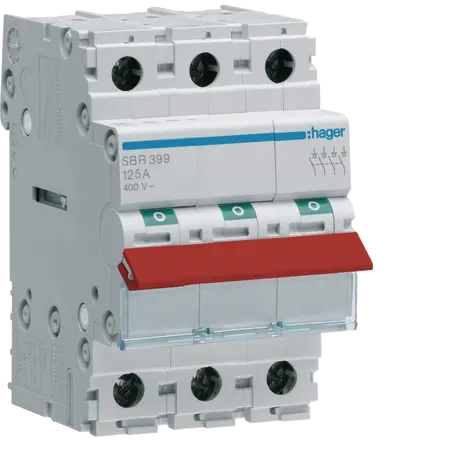

3-Pole Modular Switch 125A | Red Toggle | IP20 Protection by Hager
3-pole modular switch with 125A current rating and red toggle—ideal for residential and commercial electrical installations. Built for reliable power distribution, with IP20 protection and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-pole, 125A Modular Switch with Red Toggle
Brand: Hager
SKU: SBR399
Alternatively Known As: 125A Modular Switch
Technical Specifications
- Number of poles: 3
- Rated current: 125 A
- Rated operational voltage Ue: 400 V AC
- Ingress Protection (IP) class: IP20
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 6000 V
- Frequency: 50 - 60 Hz
- Type of pole: 3P
- Breaking capacity 400 V AC23A: 2115 A
- Rated conditional short-circuit current Icc: 1.50 kA
- Height: 83 mm
- Width: 52.50 mm
- Depth: 68 mm
- Operating temperature: -20 - 70 °C
- Storage/transport temperature: -40 - 80 °C
- Dimensions (H x L x W): 83mm x 68mm x 52.50mm
- Weight: 0.5 kg
Key Features
- 125A current rating
- 3 poles
- Red toggle for easy identification
- IP20 protection class
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with local standards.
Applications
- Residential and commercial electrical installations
- Switchboard panels
- Power distribution systems
Standards & Compliance
- Compliant with IEC 60947-3 standards
Environmental Benefits
- Compliance with energy efficiency standards
- Durable design for long-term use, reducing waste
Warranty Information
2-year warranty against manufacturing defects.
Available Now
The 3-pole, 125A Modular Switch with Red Toggle is available for immediate purchase, ideal for residential and commercial electrical installations.
