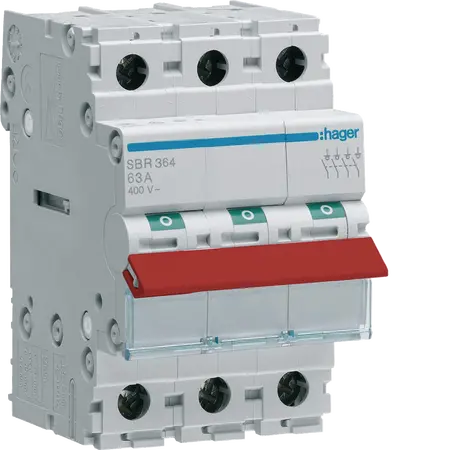

3-Pole 63A Modular Switch | Red Toggle | 50mm² Connection by Hager

BRAND: :hager
SKU: SBR364
$79.30 List price: $101.40
+ −
30 Days Return Delivery Options
3-pole modular switch with 63A capacity and red toggle—ideal for commercial and industrial electrical distribution. Built for high-load machinery, with robust design and easy screw terminal connection.

Product Name/Title: 3-pole, 63A Modular Switch 50mm² with Red Toggle

Brand: Hager

SKU: SBR364

Alternatively Known As: Modular Switch with Red Toggle

Technical Specifications
  • Number of poles: 3
  • Rated current: 63 A
  • Rated conditional short-circuit current Icc: 0.94 kA
  • Rated short-circuit making capacity Icm: 1.33 kA
  • Rated operational voltage Ue: 400 V
  • Rated insulation voltage Ui: 440 V
  • Rated impulse withstand voltage Uimp: 6000 V
  • Ingress Protection (IP) class: IP20
  • Frequency: 50 - 60 Hz
  • Number of mechanical operations: 40,000
  • Electrical durability at nominal load in AC21: 2,500 cycles
  • Total power loss under IN: 6.60 W
  • Dimensions (H x L x W): 83mm x 68mm x 52.5mm
  • Weight: 0.29 kg
Key Features
  • Robust design for high current applications
  • Easy screw terminal connection
  • Compact and modular construction
  • Durable mechanical operation
  • Red toggle for clear indication
Professional Installation Requirements
  • Professional installation by a licensed electrician is necessary to ensure safety and compliance with electrical regulations.
Applications
  • Commercial and industrial electrical distribution
  • High-load machinery connection and disconnection
  • Power distribution boards
Standards & Compliance
  • Complies with IEC 60947-3 for low voltage switchgear and controlgear standards.
Environmental Benefits
  • Energy-efficient operation with minimal power loss
  • Long-lasting durability reducing the need for replacements
Warranty Information

5-year manufacturer's warranty covering product defects.

Available Now

Available for immediate purchase, ideal for industrial and commercial applications requiring reliable high-capacity switching.

SBR364 (SBR364, 189 Kb) [Download]

reach_declaration_SBR3649.pdf (reach_declaration_SBR3649.pdf, 103 Kb) [Download]

rohs_declaration_SBR3649.pdf (rohs_declaration_SBR3649.pdf, 104 Kb) [Download]

(SBR1_2_3_4XX_ISOLATINGSWITCHES.pdf, 98 Kb) [Download]

(NETHERLANDS_LICENCE_71_125608.pdf, 2,593 Kb) [Download]

(DECLARATION_25_1516_02_25.pdf, 991 Kb) [Download]
