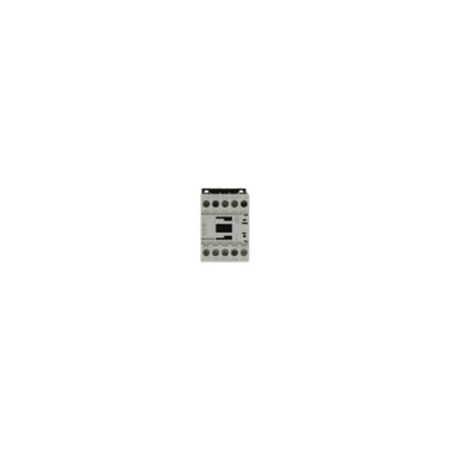

3-Pole Motor Contactor | 12A Rated Current | 7kW Power | -25°C to 60°C by Eaton
3-pole motor contactor with a rated operational current of 12A and power capacity up to 7kW—ideal for industrial automation and motor control. Built for efficiency, it features a mechanical lifespan of 10 million operations and operates in temperatures from -25°C to 60°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Motor Contactor | 12A Rated Current | 7kW Power | -25°C to 60°C by Eaton
Brand: Eaton
SKU: Y7-276819
Alternatively Known As: Eaton DILM12-10 Contactor, 3 Pole Motor Contactor, 240V AC Contactor, Eaton Moeller DILM Contactor
Technical Specifications
- Rated operational current (Ie) at AC-3, 240 V, 50 Hz: 12 A
- Rated operational power at AC-3, 240 V, 50 Hz: 4 kW
- Rated operational power at AC-3, 380/400 V, 50 Hz: 5.5 kW
- Rated operational power at AC-3, 415 V, 50 Hz: 7 kW
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 9000 mechanical operations per hour
- Ambient operating temperature: -25 °C to 60 °C
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm²
- Terminal capacity (solid): 2 x (0.75 - 2.5) mm²
- Screw size: M3.5 terminal screws
- Power consumption, pick-up, 50 Hz: 24 VA
- Rated control supply voltage (Us) at AC, 50 Hz: 240 V
- Protection: Finger and back-of-hand proof according to EN 50274
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational power up to 7 kW at 415 V, 50 Hz
- Screw terminal connections with M3.5 screws
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front (EN 50274)
- Rated impulse withstand voltage of 8000 V AC
- Operating ambient temperature range from -25 °C to 60 °C
- High switching capacity and short-circuit ratings
- Complies with multiple international standards including IEC 60947-4-1
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Motor control and switching
- Industrial automation systems
- Electrical panels and switchgear
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM12-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
