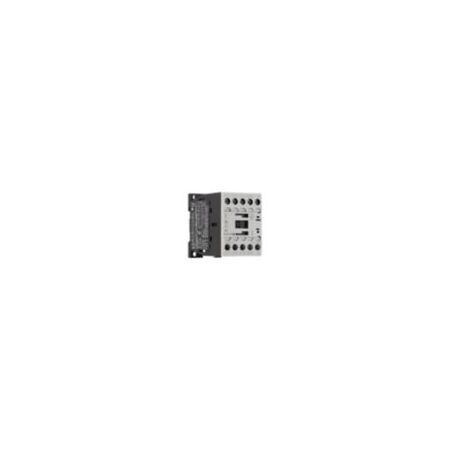

3 Pole Motor Contactor | 15.5 A Rated Current | 7.5 kW Power | -25°C to 60°C Operating Temp by Eaton
This 3 pole motor contactor operates at 240V 50Hz with a rated current of 15.5 A and a power capacity of 7.5 kW, making it ideal for motor control and industrial automation. Built for reliability with a mechanical lifespan of 10 million operations, it ensures safe and efficient performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Motor Contactor | 15.5 A Rated Current | 7.5 kW Power | -25°C to 60°C Operating Temp by Eaton
Brand: Eaton
SKU: Y7-290047
Alternatively Known As: Eaton DILM15-10 Contactor, 3 Pole Motor Contactor, 240V AC Contactor, Eaton Moeller DILM Contactor
Technical Specifications
- Number of poles: 3
- Rated operational current (Ie) at AC-3, 240 V: 15.5 A
- Rated operational power at AC-3, 380/400 V: 7.5 kW
- Rated breaking capacity at 380/400 V: 124 A
- Rated insulation voltage (Ui): 690 V
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 5000 mechanical operations per hour
- Protection: Finger and back-of-hand proof according to EN 50274
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm²
- Terminal capacity (solid): 2 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Ambient operating temperature: -25 °C to 60 °C
- Power consumption, pick-up, 50 Hz: 24 VA
- Switching time (make contacts, closing delay): 15-21 ms
- Switching time (make contacts, opening delay): 9-18 ms
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for AC operation at 240 V 50 Hz
- Rated operational power up to 7.5 kW at 380/400 V
- Screw terminal connections for secure wiring
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front
- Rated breaking capacity of 124 A at 220/230 V and 380/400 V
- Ambient operating temperature range from -25 °C to 60 °C
- Complies with multiple international standards including IEC 60947-4-1 and UL 508
Professional Installation Requirements
- Installation by a qualified electrician or professional is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Motor control and switching applications
- Industrial automation systems
- Electrical control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for long operational life reducing waste and replacement frequency
- Complies with international standards ensuring energy-efficient operation
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM15-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
