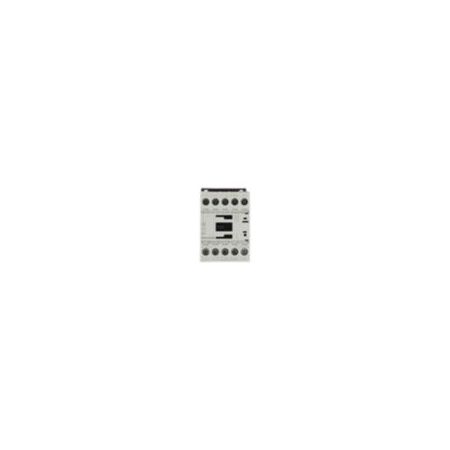

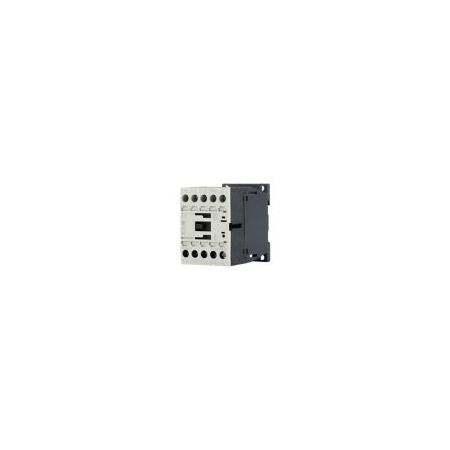

3-Pole Motor Contactor | 22A AC-1 | 5.5kW Power | 110V/120V by Eaton
3-pole motor contactor with a rated operational current of 22A (AC-1) and 5.5kW power—ideal for industrial motor control and automation. Built for efficiency, it features a long mechanical lifespan of 10 million operations and dual-frequency operation for 110V 50Hz and 120V 60Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Motor Contactor | 22A AC-1 | 5.5kW Power | 110V/120V by Eaton
Brand: Eaton
SKU: Y7-276687
Alternatively Known As: Eaton DILM9-10 Contactor, 3 Pole Motor Contactor, Eaton Moeller DILM Contactor, 110V 50Hz Contactor, 120V 60Hz Contactor
Technical Specifications
- 3-pole contactor for AC operation
- Rated operational current (Ie) AC-1: 22 A at 380-415 V
- Rated operational current (Ie) AC-3: 9 A at 220-440 V
- Rated operational power AC-3: 4 kW at 380/400 V, 5.5 kW at 415 V
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 9000 mechanical operations per hour
- Protection: Finger and back-of-hand proof (EN 50274)
- Terminal capacity: Flexible with ferrule 0.75-2.5 mm², Solid 0.75-4 mm²
- Screw size: M3.5 terminal screws
- Power consumption pick-up: 24 VA at 50 Hz, 30 VA at 60 Hz
- Ambient operating temperature: -25 °C to 60 °C
- Short-circuit current rating: 5 kA
- Rated control supply voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational current up to 22 A (AC-1) and 9 A (AC-3)
- Rated operational power up to 5.5 kW at 415 V AC-3
- Screw terminal connections with M3.5 screws
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front
- Rated impulse withstand voltage of 8000 V AC
- Dual-frequency coil for 110 V 50 Hz and 120 V 60 Hz operation
- Short-circuit current rating up to 5 kA
- Ambient operating temperature range -25 °C to 60 °C
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Motor control and switching applications
- Industrial automation systems
- AC induction motor starting, plugging, reversing, inching
- Non-inductive or slightly inductive loads
- Resistance furnaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM9-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
