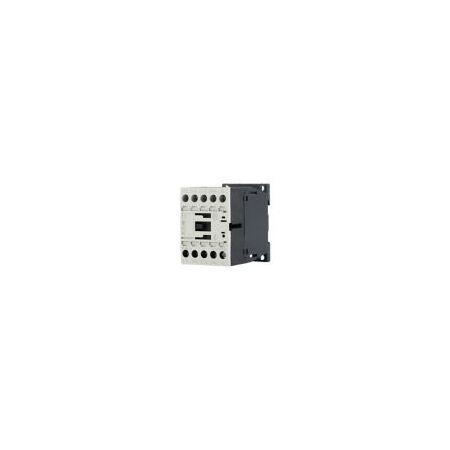

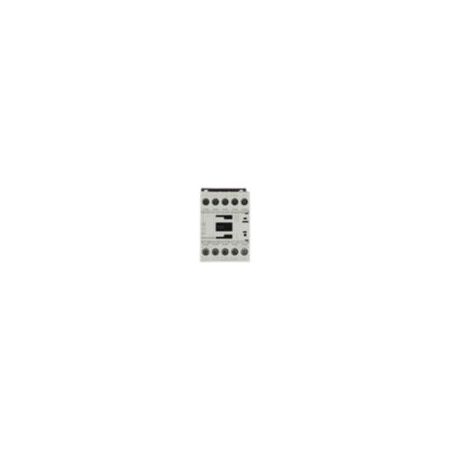

3 Pole Motor Contactor | 22A Rated Current | 5.5kW Power | 240V AC by Eaton
This 3 pole motor contactor is rated for 22A at AC-1 and 5.5kW at AC-3, making it ideal for motor control and industrial automation. Built for efficiency and durability, it features a high mechanical lifespan of 10 million operations and protection against direct contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Motor Contactor | 22A Rated Current | 5.5kW Power | 240V AC by Eaton
Brand: Eaton
SKU: Y7-276679
Alternatively Known As: Eaton DILM9-10 Contactor, Moeller DILM Contactor, 3 Pole Motor Contactor, 240V AC Contactor
Technical Specifications
- Number of poles: 3
- Rated operational current (Ie) AC-1 at 380-415 V: 22 A
- Rated operational current (Ie) AC-3 at 240 V: 9 A
- Rated operational power AC-3 at 415 V: 5.5 kW
- Rated control supply voltage (Us): 240 V AC, 50 Hz
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating temperature range: -25 °C to 60 °C
- Terminal capacity (flexible with ferrule): 1 x (0.75 - 2.5) mm²
- Tightening torque for terminals: 1.2 Nm
- Protection: Finger and back-of-hand proof according to EN 50274
- Power consumption pick-up at 50 Hz: 24 VA
- Switching time (make contacts closing delay): 15-21 ms
- Switching time (make contacts opening delay): 9-18 ms
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational current up to 22 A at AC-1, 380-415 V
- Rated operational power up to 5.5 kW at AC-3, 415 V, 50 Hz
- Screw terminal connections with M3.5 screws
- Protection against direct contact from front (finger and back-of-hand proof)
- High mechanical lifespan of 10,000,000 operations
- Rated impulse withstand voltage of 8000 V AC
- Suitable for AC operation at 240 V 50 Hz
- Overvoltage category III and pollution degree 3
- Power consumption pick-up 24 VA at 50 Hz
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Motor control and switching applications
- Industrial automation systems
- Electrical control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Eaton Moeller DILM9-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
