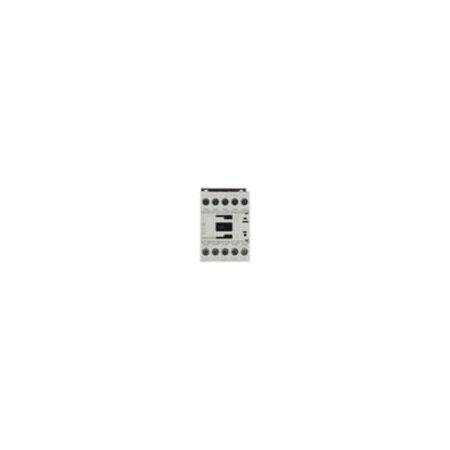

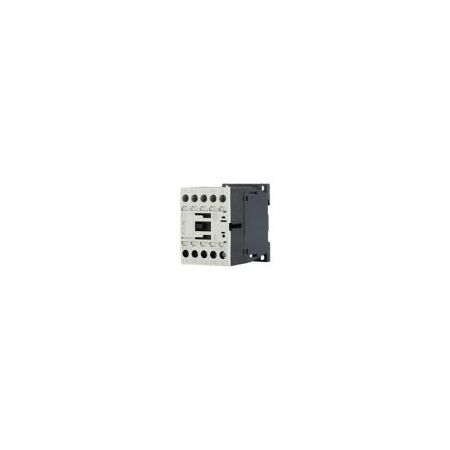

3 Pole Motor Contactor | 22 A Rated Current | 5.5 kW Power | 415V/480V by Eaton

BRAND: Eaton
SKU: Y7-276693
$64.70 List price: $80.70
+ −
30 Days Return Delivery Options
This 3 pole motor contactor is designed for AC operation at 415V 50Hz and 480V 60Hz, with a rated operational current of 22 A and a power capacity of 5.5 kW. Ideal for industrial automation and motor control applications, it features a mechanical lifespan of 10 million operations and protection against direct contact.

Product Name/Title: 3 Pole Motor Contactor | 22 A Rated Current | 5.5 kW Power | 415V/480V by Eaton

Brand: Eaton

SKU: Y7-276693

Alternatively Known As: Eaton DILM9-10 Contactor, 3 Pole Motor Contactor, Eaton Moeller DILM Contactor, Industrial Motor Contactor

Technical Specifications
  • Number of poles: 3
  • Rated operational current (AC-1, 380-415 V): 22 A
  • Rated operational current (AC-3, 380-415 V): 9 A
  • Rated operational power (AC-3, 415 V, 50 Hz): 5.5 kW
  • Rated insulation voltage: 690 V
  • Rated control supply voltage: 415 V AC at 50 Hz, 480 V AC at 60 Hz
  • Mechanical lifespan: 10,000,000 operations
  • Operating temperature range: -25 °C to 60 °C
  • Terminal capacity (flexible with ferrule): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
  • Terminal capacity (solid): 2 x (0.75 - 2.5) mm², 1 x (0.75 - 4) mm²
  • Screw size: M3.5
  • Tightening torque: 1.2 Nm
  • Protection: Finger and back-of-hand proof according to EN 50274
  • Switching time (make contacts): 15-21 ms
  • Switching time (break contacts): 9-18 ms
  • Power consumption (pick-up coil): 24 VA at 50 Hz, 30 VA at 60 Hz
  • Dimensions (H x L x W): 68mm x 75mm x 45mm
  • Weight: 0.24 kg
Key Features
  • 3-pole contactor suitable for AC operation at 415 V 50 Hz and 480 V 60 Hz
  • Rated operational current up to 22 A (AC-1) and 9 A (AC-3)
  • Rated operational power up to 5.5 kW at 415 V 50 Hz
  • Screw terminal connections with M3.5 screws
  • Mechanical lifespan of 10,000,000 operations
  • Protection against direct contact from front (finger and back-of-hand proof)
  • Suitable for motors with efficiency class IE3
  • Dual-frequency coil with power consumption of 24 VA at 50 Hz and 30 VA at 60 Hz
  • Rated insulation voltage of 690 V
  • Complies with IEC/EN 60947-4-1 and other international certifications
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician familiar with industrial electrical equipment and motor control systems to ensure safety and compliance with local regulations.
Applications
  • Motor control and switching applications
  • Industrial automation systems
  • AC induction motor starting and stopping
  • Non-inductive or slightly inductive load switching
  • Plugging, reversing, and inching of motors
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed for efficient motor control reducing energy waste
  • Supports IE3 efficiency class motors promoting energy savings
  • Durable design reduces replacement frequency and waste
Warranty Information

Standard Eaton warranty against manufacturing defects; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller DILM9-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.

Product specifications (skuPage.276693.pdf, 81 Kb) [Download]
