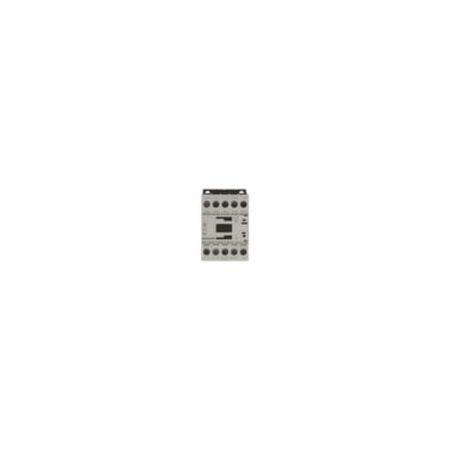

3 Pole Motor Contactor | 240V AC | 22A Current Rating | 10 Million Operations by Eaton
This 3 pole motor contactor operates at 240V AC and supports up to 22A, making it ideal for industrial motor control and automation systems. Built for efficiency and durability, it features a high mechanical lifespan of 10 million operations and protection against direct contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Motor Contactor | 240V AC | 22A Current Rating | 10 Million Operations by Eaton
Brand: Eaton
SKU: Y7-276539
Alternatively Known As: Eaton DILM7-10 Contactor, Moeller DILM Contactor, 3 Pole Motor Contactor, 240V AC Contactor
Technical Specifications
- Number of poles: 3
- Rated operational power at AC-3, 240 V, 50 Hz: 2.2 kW
- Rated operational power at AC-3, 380/400 V, 50 Hz: 3 kW
- Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V: 22 A
- Rated operational current (Ie) at AC-3, 220 V to 440 V: 7 A
- Rated insulation voltage (Ui): 690 V
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 9000 mechanical operations per hour
- Protection: Finger and back-of-hand proof according to EN 50274
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm²
- Terminal capacity (solid): 1 x (0.75 - 4) mm²
- Screw size: M3.5 terminal screws
- Tightening torque: 1.2 Nm
- Ambient operating temperature: -25 °C to 60 °C
- Power consumption pick-up at 50 Hz: 24 VA
- Duty factor: 100%
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational power up to 4 kW at 415 V AC
- Screw terminal connections with M3.5 screws
- Protection against direct contact when actuated from front (EN 50274)
- High mechanical lifespan of 10,000,000 operations
- Rated impulse withstand voltage of 8000 V AC
- Suitable for AC operation at 240 V 50 Hz
- Rated operational current up to 22 A at AC-1 category
- Short-circuit current rating up to 60 A
- Ambient operating temperature range from -25 °C to 60 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Motor control and switching
- Industrial automation systems
- AC induction motor starting, plugging, reversing, inching
- Non-inductive or slightly inductive loads
- Resistance furnaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller DILM7-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
