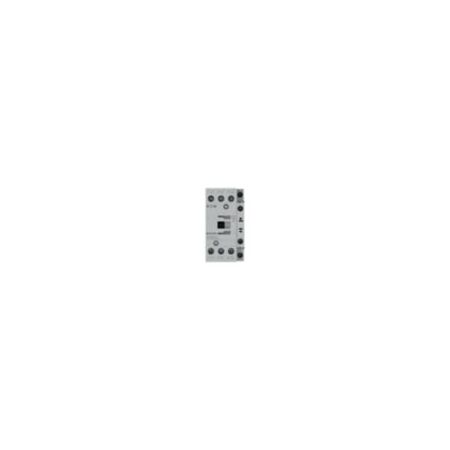

3 Pole Motor Contactor | 240V AC | 45A Current Rating | 18.5kW Power | Eaton
This 3 pole motor contactor operates at 240V AC and supports up to 45A current, making it ideal for motor control and industrial automation. Built for reliability with a high mechanical lifespan of 10 million operations, it ensures efficient switching and compliance with international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Motor Contactor | 240V AC | 45A Current Rating | 18.5kW Power | Eaton
Brand: Eaton
SKU: Y7-112420
Alternatively Known As: Eaton DILM Contactor, 3 Pole Contactor, Motor Contactor 240V, AC Contactor 50Hz, Screw Terminal Contactor
Technical Specifications
- Rated operational voltage: 240 V AC, 50 Hz
- Number of poles: 3
- Rated operational power: 18.5 kW at 380/400 V, 50 Hz
- Rated operational current (Ie): 45 A at AC-1, 38 A at AC-3
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 5000 mechanical operations per hour
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 10) mm²
- Terminal capacity (solid): 1 x (0.75 - 4) mm²
- Screw size: M5 for main cables, M3.5 for control circuit cables
- Tightening torque: 1.2 Nm for control circuit cables, 3.2 Nm for main cables
- Protection: Finger and back-of-hand proof according to EN 50274
- Ambient operating temperature: -25 °C to 60 °C
- Power consumption (pick-up, 50 Hz): 52 VA
- Rated breaking capacity at 380/400 V: 320 A
- Dimensions (H x L x W): 85mm x 97mm x 45mm
- Weight: 0.43 kg
Key Features
- 3-pole contactor suitable for 380-400 V AC operation
- Rated operational power up to 18.5 kW at 380/400 V, 50 Hz
- Single normally open (N/O) auxiliary contact
- Screw terminal connections for secure wiring
- High mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front
- Rated operational current up to 45 A at AC-1 category
- Complies with multiple international standards including UL, CSA, VDE, IEC
- Shock resistance compliant with IEC/EN 60068-2-27
- Ambient operating temperature range from -25 °C to 60 °C
Professional Installation Requirements
- Installation must be performed by a qualified electrician following local electrical codes and Eaton installation guidelines to ensure safety and compliance.
Applications
- Motor control and switching applications
- Industrial automation systems
- Electrical contactor for AC motors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High efficiency switching reduces energy loss during motor operation
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM38-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
