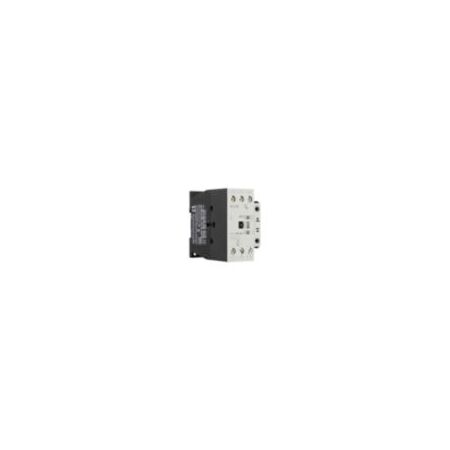

3-Pole Motor Contactor | 45A AC-1 | 14.5kW Power | Dual-Frequency by Eaton
3-pole motor contactor with a rated operational current of 45A and power up to 14.5kW—ideal for industrial automation and motor control. Built for efficiency and durability, it features a mechanical lifespan of 10 million operations and is suitable for various motor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Motor Contactor | 45A AC-1 | 14.5kW Power | Dual-Frequency by Eaton
Brand: Eaton
SKU: Y7-277135
Alternatively Known As: Eaton DILM25-10 Contactor, Moeller DILM Contactor, 3 Pole Motor Contactor, Industrial Motor Contactor, AC Motor Contactor
Technical Specifications
- Dimensions (H x L x W): 85mm x 97mm x 45mm
- Weight: 0.43 kg
Key Features
- 3-pole full voltage non-reversing contactor
- Rated operational current up to 45 A (AC-1) and 25 A (AC-3)
- Rated operational power up to 14.5 kW at 415 V, 50 Hz
- Screw terminal connections with M5 and M3.5 screws
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact from front (finger and back-of-hand proof)
- Shock resistance compliant with IEC/EN 60068-2-27
- Dual-frequency coil for 415-480 Vac, 50/60 Hz operation
- Rated insulation voltage of 690 V
- Suitable for motors with efficiency class IE3
- Can be combined with auxiliary contacts DILM32-XHI, DILA-XHI(V)
Professional Installation Requirements
- Installation by a qualified electrician or professional is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Motor control and switching
- Industrial automation systems
- AC induction motor starting, plugging, reversing, and inching
- Non-inductive or slightly inductive loads
- Resistance furnaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Durable design with long mechanical lifespan reduces waste
- Complies with standards ensuring safe and reliable operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM25-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
