3 Pole Reversing Cam Switch | 25A Panel Mount | Front Mounting by NHP
3 pole reversing cam switch with 25A rating and front mounting—ideal for industrial machinery control and commercial equipment management. Built for versatile operation, with durable design for reduced replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

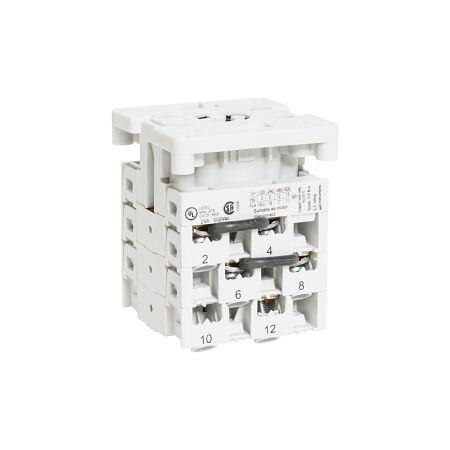

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 25A Panel Mount
Brand: NHP
SKU: LE2257303
Alternatively Known As: 3 Pole Cam Switch, Reversing Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 11 kW
- Rated operation current at AC 15 230 V: 8 A
- Rated operation current at AC 15 400 V: 6 A
- Rated operation current at AC 22A 690 V: 25 A
- Rated operation current at AC 22A 220-500 V: 25 A
- Rated operation current at AC 21A 690 V: 25 A
- Rated operation current at AC 1 690 V: 25 A
- Thermal current enclosed: 25 A
- Thermal current open: 30 A
- Type of electrical connection: Screw connection
- Material housing: Plastic
- Wire conductor size rigid cable: 1.5-6 mm²
- Wire conductor size flex cable: 1.5-4 mm²
- Degree of protection: IP20
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 55mm x 69.5mm x 55mm
- Weight: 0.5 kg
Key Features
- 3 pole reversing switch for versatile operation.
- Rated for 25A with a mechanical life of 1,000,000 cycles.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching and power management
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 25A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
