3 Pole Switch 500VAC | Key Lock & Off Locking | IP66 Grey by Clipsal
3 pole switch with 500VAC rating and key lock mechanism—ideal for industrial control applications. Built for security and durability, with IP66 protection against dust and water.
Sign in
Please login to continue to your account.

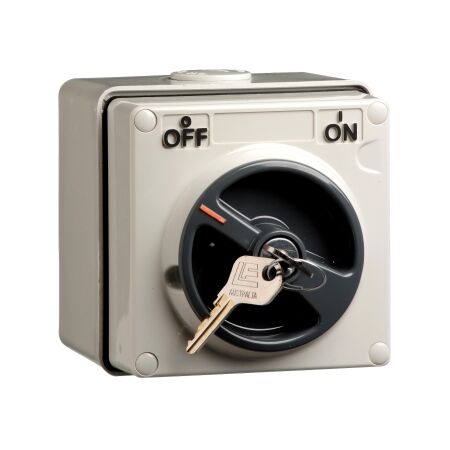

Product Name/Title: Clipsal - 56 Series, Switch, 3 Pole, 500VAC, 20A, Common Key Lock, Off Locking Position - Grey
Brand: Clipsal
SKU: 56K1SW320CK-GY
Alternatively Known As: 3 Pole Switch, Key Lock Switch, Rotary Switch
- Rated operational voltage: 500 VAC
- Rated current: 20 A
- Material: Polycarbonate
- Breaking capacity: 20 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 107mm x 112mm x 101mm
- Weight: 0.658 kg
- 3-pole switch with rotary knob control.
- Key lock mechanism for added security.
- IP66 rated for protection against dust and water.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control applications in small commercial and utility sectors.
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
- Compliant with RoHS directives and environmental regulations.
Standard warranty applies.
The Clipsal 56 Series 3 Pole Switch with Key Lock is available now for immediate purchase. Ideal for industrial control applications.
