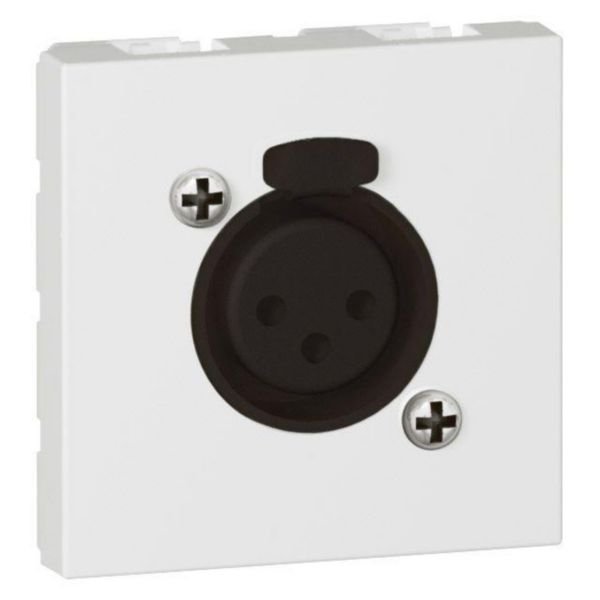

3-Pole XLR Socket Female | Flush-Mounted | IP40 Rated | White | @Each of 1 | by Legrand
The 3-pole XLR socket female is designed for seamless audio connections, featuring a flush-mounted installation and IP40 rating for protection against solid objects. Ideal for professional audio/video systems and microphone connections, this durable socket is made from halogen-free thermoplastic, ensuring longevity and environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole XLR Socket Female | Flush-Mounted | IP40 Rated | White | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572283
Alternatively Known As: XLR female socket, 3-pin XLR connector, audio XLR socket, microphone socket, 2 module XLR socket
Technical Specifications
- 3-pole female XLR socket
- Flush-mounted installation
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9003)
- IP rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- No dust cover or hinged lid
- No strain relief or shielded housing
- Fast screw connection
- Number of modules: 2
- Dimensions (H x L x W): 45mm x 40mm x 45mm
- Weight: 0.1 kg
Key Features
- 3-pole female XLR socket providing stereo link for audio devices
- Recommended cable: shielded audio pair 0.14 mm² to 0.50 mm²
- Maximum cable length: 50 m without amplifier
- Fast screw connection for easy installation
- Flush-mounted with glossy white thermoplastic finish
- Halogen free material
- IP40 rated for protection against solid objects
- IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Audio/video systems for professional and home use
- Microphone connections
- Amplifier and mixing console interfaces
- Peripheral audio device connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic housing extends product life and reduces waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 3-pole XLR female socket 2 modules white is available for immediate purchase, ideal for professional audio and building wiring applications.
