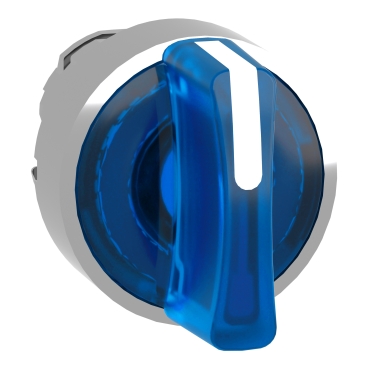

3 Position Illuminated Selector Switch | LED Actuator | IP65 Rated | by Clipsal
The 3 Position Illuminated Selector Switch is designed for versatile control in industrial and commercial applications. Featuring a robust LED actuator for clear status indication and an IP65 rating for front panel protection, this switch is perfect for integration into control panels and machinery operation. Built to withstand demanding environments, it ensures reliable performance and compliance with Australian electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Position Illuminated Selector Switch | LED Actuator | IP65 Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB4BK1363
Alternatively Known As: 3 position selector switch, illuminated selector switch, Clipsal illuminated switch, SCHZB4BK1363 switch
Technical Specifications
- Type: 3 position illuminated selector switch
- Actuator: Illuminated
- Mounting: Panel mount
- Voltage rating: 250V AC
- Current rating: 10A
- Contact configuration: 1NO + 1NC
- Illumination: LED
- Material: High-grade thermoplastic and metal
- Ingress protection: IP65 (front panel)
- Dimensions (H x L x W): 60mm x 30mm x 30mm
- Weight: 0.15 kg
Key Features
- Three-position selector switch for versatile control
- Illuminated actuator for clear status indication
- Robust construction for industrial environments
- Easy integration into standard control panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards.
Applications
- Industrial control panels
- Commercial electrical installations
- Machinery operation
- Building automation systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-lasting LED illumination reduces maintenance and energy consumption.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3 Position Illuminated Switch SCHZB4BK1363 is available for immediate purchase. Ideal for industrial and commercial control panel applications.
