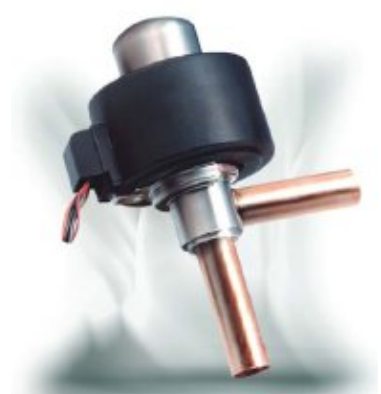

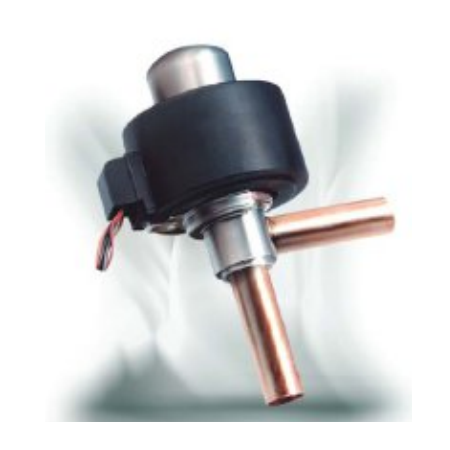

3-series EEV Valve 6.5 Orifice | 126kW Capacity | R410A Compatible | Energy Efficient Control | by Aspen Pumps
The 3-series EEV valve with a 6.5 mm orifice and 126kW capacity is designed for commercial refrigeration and heat pump systems. This energy-efficient valve supports multiple refrigerants, including R410A, and features inbuilt diagnostics for optimal performance. Ideal for HVAC professionals, it ensures reliable superheat control and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-series EEV Valve 6.5 Orifice | 126kW Capacity | R410A Compatible | Energy Efficient Control | by Aspen Pumps
Brand: Aspen Pumps
SKU: 703-065
Alternatively Known As: Electronic Expansion Valve, EEV Valve 6.5 Orifice, Aspen EEV 126kW, Refrigeration Expansion Valve
Technical Specifications
- Orifice size: 6.5 mm
- Capacity: 126 kW with R410A refrigerant
- Compatible refrigerants: R410A, R407C, R404A, R134A, R290
- Control type: Single and bi-directional
- Certifications: UL, CSA, PED compliant, ISO/AS 5149.2
- Functions: Multiple input including compressor, reverse valve, defrost
- Superheat control: Minimum stable superheat function
- Diagnostics: Inbuilt system diagnostics
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 1.2 kg
Key Features
- Energy efficient expansion and superheat control
- Single and bi-directional control suitable for refrigeration and heat pump systems
- Multiple input functions including compressor, reverse valve, and defrost
- Compatible with multiple refrigerants: R410A, R407C, R404A, R134A, R290
- Minimum stable superheat function for optimized performance
- Inbuilt diagnostics for system monitoring and troubleshooting
- Certified UL, CSA, PED compliant and meets ISO/AS 5149.2 standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration specialist is required to ensure proper integration and compliance with safety standards.
Applications
- Commercial refrigeration systems
- Heat pump systems
- Air conditioning units using R410A and other refrigerants
- Industrial cooling applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Improves energy efficiency of HVAC and refrigeration systems, reducing power consumption
- Supports use of environmentally friendly refrigerants like R410A and R290
- Inbuilt diagnostics help optimize system performance and reduce refrigerant leaks
Warranty Information
Standard manufacturer warranty of 1 year covering defects in materials and workmanship.
Available Now
The Aspen 3-series EEV Valve 6.5 Orifice 126kW R410A is available for immediate purchase, ideal for commercial refrigeration and heat pump applications.
