3 Way CATV Splitter 1GHz | 5-1000MHz Range | F-Type Connectors | Metal Casing by Matchmaster
3 way CATV splitter with 5-1000MHz frequency range and F-type connectors—ideal for residential and commercial signal distribution. Built for durability, with metal casing and optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

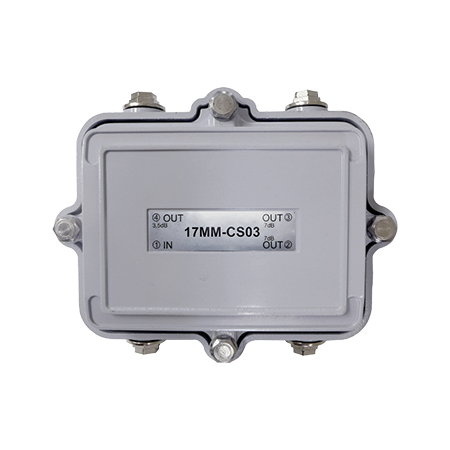

Product Name/Title: 3 Way CATV Splitter 1GHz
Brand: Matchmaster
SKU: 17MM-CS03
Alternatively Known As: 3 Way Cable TV Splitter, 3 Port CATV Splitter, RF Signal Splitter 1GHz
Technical Specifications
- Frequency Range: 5-1000 MHz
- Insertion Loss: 8.2dB-9.2dB
- Isolation: 18dB-20dB
- Return Loss: 16dB-17dB
- Current Capacity: 10 Amps
- Dimensions (H x L x W): 30mm x 100mm x 80mm
- Weight: 0.2 kg
Key Features
- Current capacity 10 Amps
- Frequency range 5 - 1000 MHz
- High isolation between outputs
- Weatherproof housing
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with safety standards.
Applications
- Terrestrial and Satellite TV distribution
- Hardline cable networks
- Residential and commercial CATV systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable weatherproof design reduces need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 3 Way CATV Splitter 1GHz is available now for immediate purchase. Ideal for residential and commercial CATV and satellite TV distribution systems.
