3 Way Splitter for Foxtel SMS | Max 30V 2A | Power Pass All Ports by Matchmaster
3 way splitter with max 30V 2A power pass on all ports—ideal for homes and offices with Foxtel SMS systems. Built for seamless connectivity, reducing electronic waste with efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

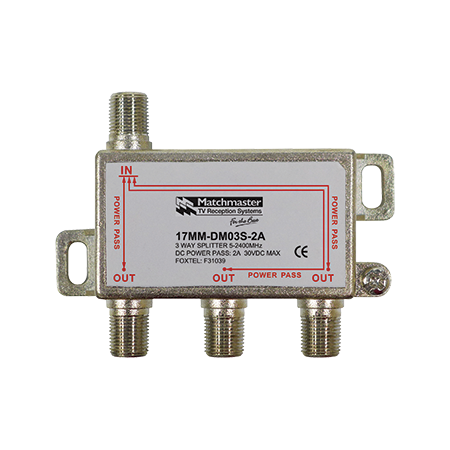

Product Name/Title: 3 Way Splitter for Foxtel SMS Systems Max 30V 2A Power Pass All Ports
Brand: Matchmaster
SKU: 17MM-DM03S-2A
Alternatively Known As: Foxtel 3 Way RF Splitter, Power Pass Splitter, Satellite Signal Splitter, SMS System Splitter
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion Loss: 6.7 to 11.0dB depending on frequency band
- Return Loss: ≥10dB across all frequency bands
- Isolation: ≥23dB from 5MHz to 2400MHz
- DC Power Passing: Max 2A at 30V DC bidirectional on all ports
- Dimensions (H x L x W): 25mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- Foxtel approved (F31039)
- High isolation splitter for Foxtel SMS systems
- Max 2A 30V DC pass all ports bidirectional
- Return loss ≥10dB across frequency range
- Frequency range 5-2400MHz
- Insertion loss 6dB to 10dB from 45-2400MHz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper signal integrity and safety compliance.
Applications
- Foxtel SMS systems
- Terrestrial and Satellite frequency distribution
- Residential and commercial TV and satellite installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient signal distribution reducing the need for multiple cables and devices
- Durable design reduces electronic waste by extending system lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster 3 Way Splitter for Foxtel SMS Systems is available now for immediate purchase. Ideal for residential and commercial satellite and terrestrial TV installations.
