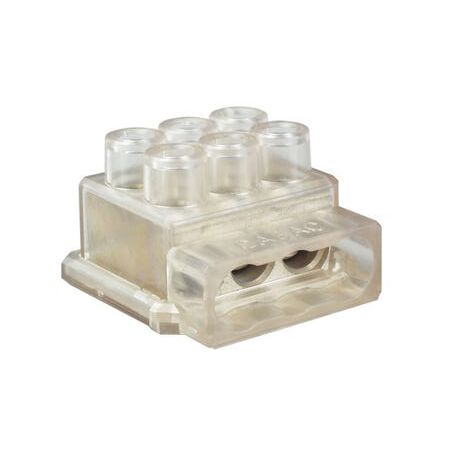

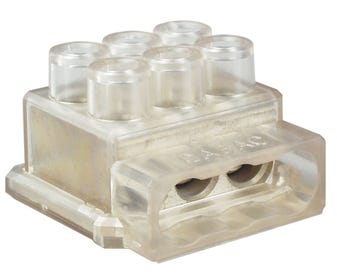

3 Way Terminal Block 3 x 50mm² | Shrouded Allen Screws | Polycarbonate Cover by Cabac

BRAND: CABAC

SKU: TB503

$14.60 List price: $18.20

+ −

30 Days Return Delivery Options

3 way terminal block with shrouded allen screws and polycarbonate cover—ideal for URD pillar applications. Built for secure connections, accommodating power conductors up to 50mm².

Description

Product Name/Title: 3 Way Terminal Block 3 x 50mm2

Brand: Cabac

SKU: TB503

Alternatively Known As: 3 Way Terminal Connector, 3 Way Power Terminal Block, URD Terminal Block, Electrical Terminal Block 50mm2

Technical Specifications

Conductive Material: Brass alloy tinned
Set Screw Material: Brass alloy tinned
Cover Material: Polycarbonate
Suitable for AL & Cu conductors from 2.5 to 50 sq. mm
Requires 5 mm allen key for grub screws
Two allen screws per conductor for enhanced security
Dimensions (H x L x W): 30mm x 40mm x 100mm
Weight: 0.2 kg

Key Features

Shrouded allen key screws for clamping the conductor
Two allen screws per conductor for extra security
Available in 3 and 6 way configurations
6 way block includes touch proof blanking insert to prevent accidental electrocution

Professional Installation Requirements

Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper conductor connection.

Applications

URD pillars for consumer mains connections
Electrical power conductor connections in residential and commercial installations

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable materials reduce the need for frequent replacements
Polycarbonate cover provides insulation reducing electrical faults and energy loss

Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac 3 Way Terminal Block 3 x 50mm² is available now for immediate purchase. Ideal for URD pillar electrical connections and power conductor terminations.
