3 Way Y Shape Connector | IP68 Waterproof | Versatile Cable Diameters by CLA Lighting
3 way Y shape connector with IP68 waterproof rating and versatile cable diameters—ideal for industrial and commercial outdoor installations. Built for durability, with extra rubber fittings for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

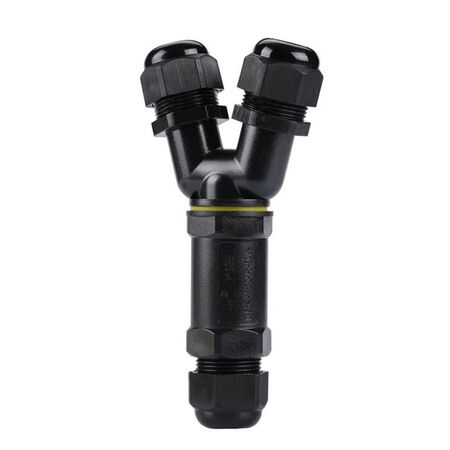

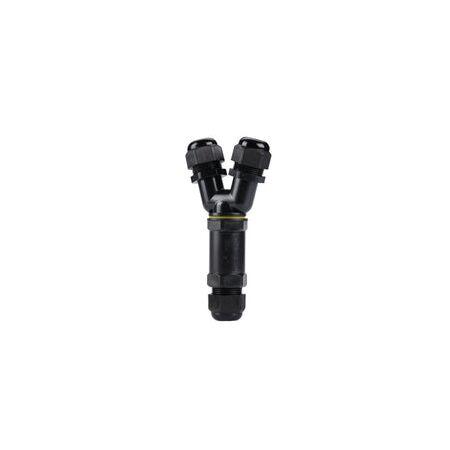

Product Name/Title: CONNECTOR 3 Way Y Shape IP68 W/Proof
Brand: CLA Lighting
SKU: CONN007
Alternatively Known As: 3 Way Waterproof Connector, Y Shape Connector, IP68 Connector
Technical Specifications
- Housing: Nylon + PC
- Conductor: Brass
- Rated Power: 32A 450VAC
- Rated connecting capacity: 0.5 ~ 4.0mm²
- Available cable diameter (Rubber): 4-8mm / 8-12mm

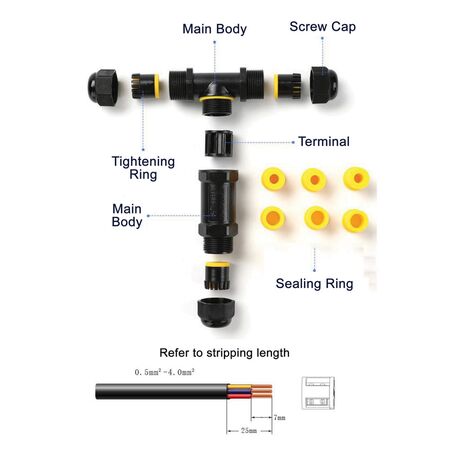

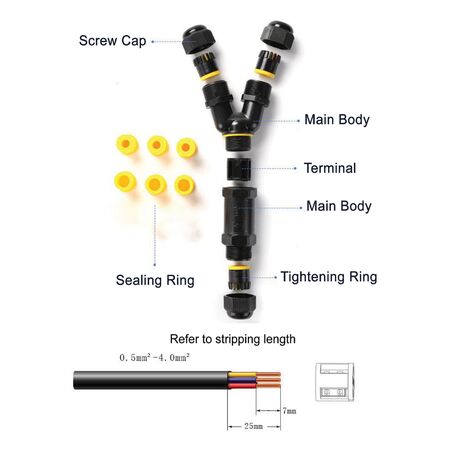

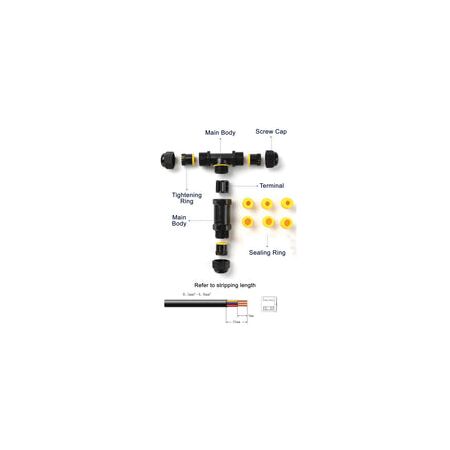

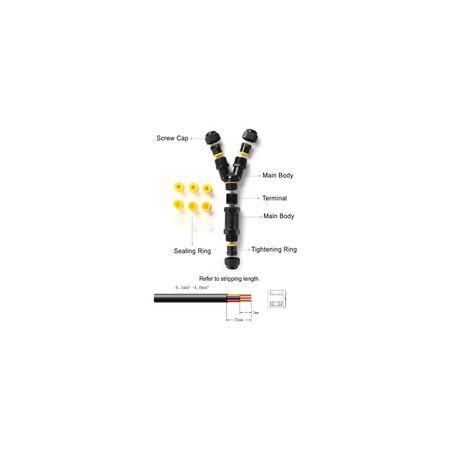

- Refer to stripping length: External stripping 25mm; Internal stripping 7mm
- IP rating: IP68

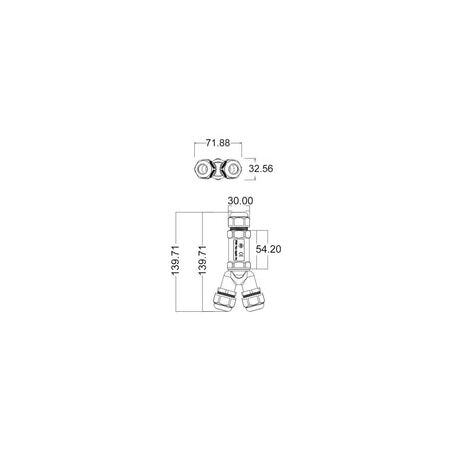

- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- IP68 rated for complete protection against dust and water ingress.
- Includes extra rubber fittings for versatile cable diameters.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for outdoor and harsh environments requiring waterproof connections.
- Commercial: Ideal for use in construction sites and outdoor installations.
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year replacement warranty.
Available Now
The CONNECTOR 3 Way Y Shape IP68 Waterproof is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable waterproof connections.
