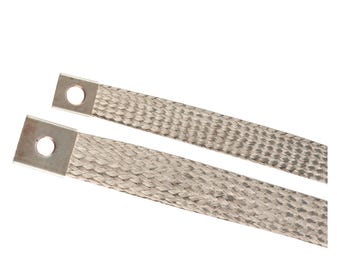

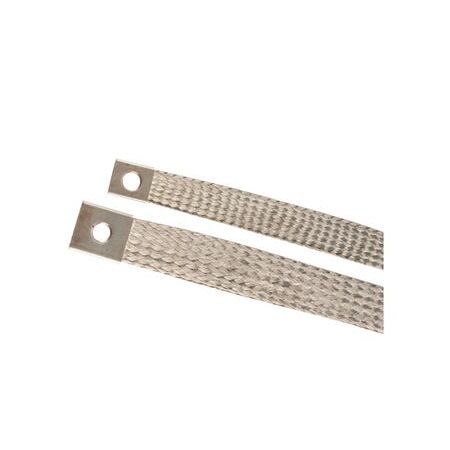

300A Copper Braid with Two 12mm Studs | Flexible Design | Tinned Finish | 500mm Long by Cabac
The Cabac 300A Copper Braid is a flexible copper lead 500mm long with two 12mm studs, ideal for electrical disconnects, switch handle grounds, and vibration absorption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 300A Copper Braid 500mm Long Two 12mm Studs
Brand: Cabac
SKU: CAB300A-500M12
Alternatively Known As: Flexible Copper Braid 300A, Copper Grounding Braid, Electrical Copper Link, Copper Braided Connector
Technical Specifications
- Current Rating: 300 AMP nominal (derate by 20% for indoor use)
- Material: Pure copper braid with tinned finish
- Ferrules: Seamless pure copper, rectangular shaped, plated
- Studs: Two 12mm diameter studs
- Length: 500mm between centers of studs
- Flexible lead suitable for vibration absorption and thermal expansion
- Dimensions (H x L x W): n/a mm x 500mm x n/a mm
- Weight: 0.3 kg
Key Features
- Seamless pure copper ferrules formed into a rectangular shape on each end
- Standard braids supplied with tinned braid and plated ferrules
- Available with single or double hole
- Custom ends and braid types available on request
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical disconnects and switch handle grounds
- Absorbing vibration in electrical systems
- Compensating for linear expansion and contraction in electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper material reduces need for frequent replacements
- Flexible design minimizes mechanical stress, extending product life
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac 300A Copper Braid 500mm Long with Two 12mm Studs is available for immediate purchase, ideal for electrical grounding and connectivity applications.
