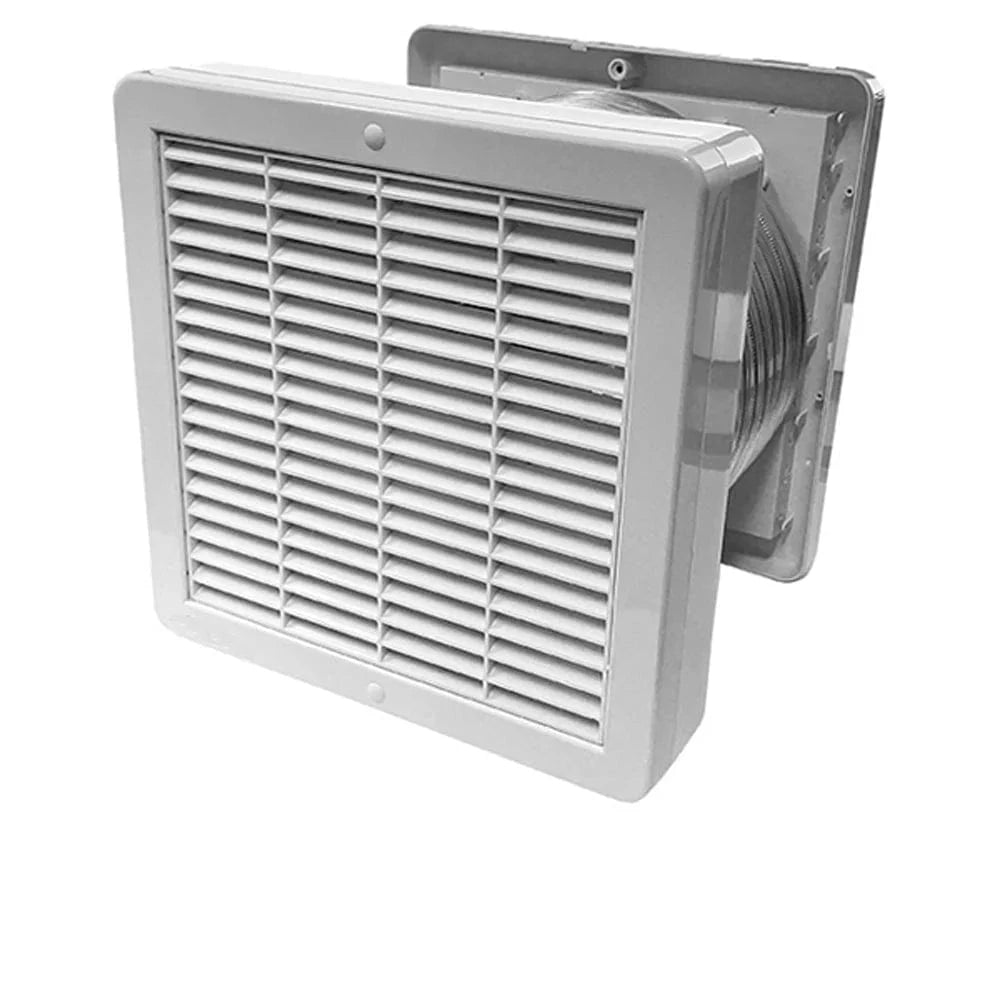

300mm Commercial Exhaust Fan Kit 1100m³/h White Ventair
300mm Wall/Ceiling Mounted Commercial Fan Kit Standard Model Standard Switch 306l/s 1100m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: FAN2042, 300mm Through-Wall Commercial Exhaust Fan Kit, 300mm Wall/Ceiling Mounted Commercial Fan
Technical Specifications
- Fan Size: 300mm
- Air Delivery: 1100m³/h or 306L/sec
- Motor Power: 82W
- Supply Voltage: 220–240V AC
- Frequency: 50Hz
- Maximum Pressure: 60Pa
- Fan Speed: 1300rpm
- Noise Level: 60dB(A)
- Ingress Protection: IPX4
- Cut-Out Size: 310mm nominal diameter
- Switching: Standard remote-switch operation; switch not supplied
- Motor Type: Ball-bearing axial motor
- Grille: White fixed exterior grille
- Duct Type: Aluminium semi-rigid ducting
- Duct Length: 375mm
- Operating Temperature: Up to 50°C
- Dimensions (H x L x W): 156mm x 362mm x 362mm
- Weight: 4.5 kg
Key Features
- Designed for wall or ceiling mounting
- Suitable for ducting directly through an exterior wall
- Includes expandable semi-rigid aluminium ducting
- Includes weatherproof exterior grille
- Ball-bearing motor designed to extend motor service life
- Standard switching configuration for connection to a remote switch
- High-volume extraction for commercial ventilation applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the installation instructions and applicable Australian electrical requirements. Ensure the exhaust discharge is ducted to outdoor air where required by the building application.
Applications
- Commercial buildings
- Workshops and utility areas
- Warehouses and storage areas
- Plant rooms and service areas
- Commercial bathrooms and amenities
- Through-wall ventilation installations
Standards & Compliance
- AS/NZS 60335.2.80:2016 – applicable safety requirements for fans
- AS/NZS 3000 – applicable electrical installation requirements
Environmental Benefits
- Ball-bearing motor construction is designed to extend service life and reduce replacement waste
- Specific fan power of 0.27W/L/sec supports comparatively efficient air extraction
- Durable ventilation equipment can reduce the frequency of replacement and associated material waste
Warranty Information
Three-year limited warranty against manufacturing defects for domestic use. Products used in commercial applications are covered for a maximum of one year. Warranty conditions require installation by a licensed electrical contractor where applicable.
Available Now
Available through authorised Ventair distributors in Australia.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
