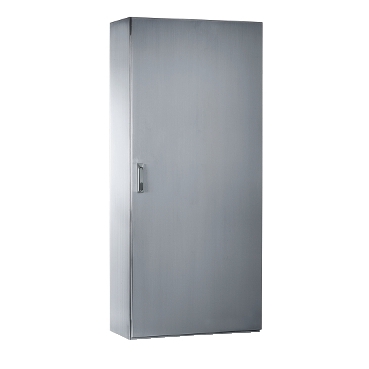

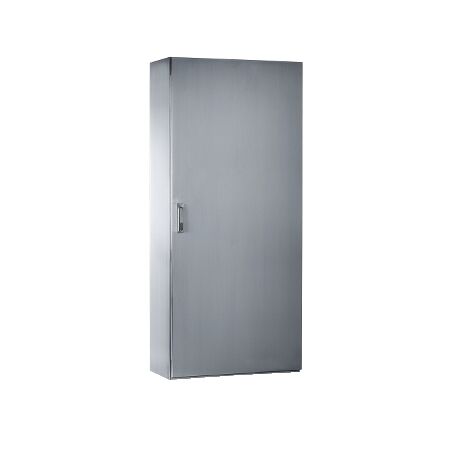

304L Stainless Steel Electrical Enclosure | IP66 Rated | Monobloc Design | Scotch Brite Finish | @Pack of 1 | by Clipsal
The 304L Stainless Steel Electrical Enclosure is designed for demanding industrial applications, featuring a robust monobloc construction and IP66 rating for superior dust and water protection. Ideal for food processing, pharmaceutical manufacturing, and outdoor installations, this enclosure ensures long-lasting performance with its corrosion-resistant 304L stainless steel and professional Scotch Brite finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Electrical Enclosure | IP66 Rated | Monobloc Design | Scotch Brite Finish | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYSMX20850
Alternatively Known As: Stainless Steel Electrical Enclosure, Clipsal SMX Enclosure, 304L Stainless Monobloc Cabinet, Industrial Control Panel Enclosure, IP66 Stainless Steel Box
Technical Specifications
- Material: 304L stainless steel
- Finish: Scotch Brite®
- Ingress Protection: IP66
- Door: Single, hinged with concealed hinges
- Locking: 3-point locking system
- Mounting: Floor standing
- Gasket: Polyurethane for dust and water sealing
- Operating temperature: -40°C to +80°C
- Dimensions (H x L x W): 2000mm x 500mm x 800mm
- Weight: 120 kg
Key Features
- Constructed from high-grade 304L stainless steel for superior corrosion resistance
- Monobloc welded design for enhanced strength and rigidity
- Scotch Brite® finish for a clean, professional appearance
- IP66 rated for dust-tight and powerful water jet protection
- Suitable for use in demanding industrial and outdoor environments
- Large internal space for complex electrical assemblies
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Secure mounting and correct earthing are essential.
Applications
- Industrial electrical control panels
- Food and beverage processing plants
- Pharmaceutical manufacturing
- Chemical processing facilities
- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Long-lasting stainless steel construction reduces replacement frequency and waste
- Corrosion resistance minimizes environmental contamination from rust
- Fully recyclable materials at end of life
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Clipsal SMX 304L Stainless Steel Monobloc Enclosure 2000x800x500mm is available for immediate purchase. Ideal for industrial, food processing, and outdoor electrical installations.
