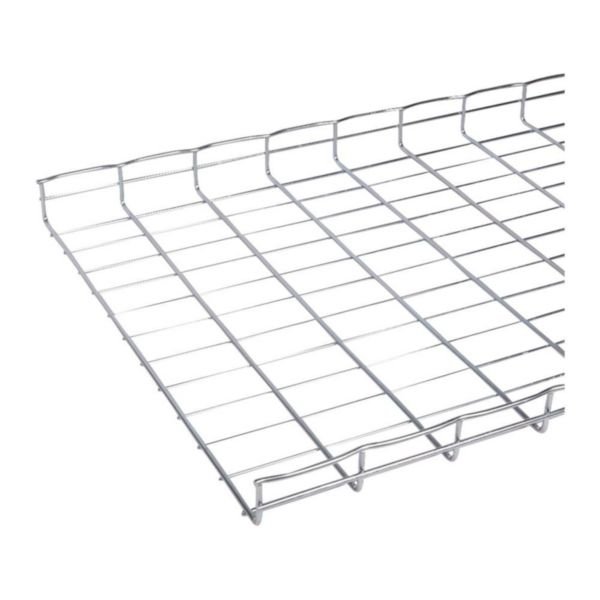

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and corrosion-resistant stainless steel construction. Ideal for commercial and infrastructure wiring installations, it ensures natural ventilation for greater cable efficiency and operates effectively in harsh environments with temperatures ranging from -20°C to 120°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000408
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 600x54x3000mm, SS304 Cable Tray, Wire Mesh Tray 3m Length
Technical Specifications
- Profile shape: U-shape
- Width: 600 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 30633 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Weight: 3.4 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- No integrated partition
- Model without connector
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 600mm
- Weight: 10.2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Harsh environments requiring corrosion resistance
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty terms.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 600mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
