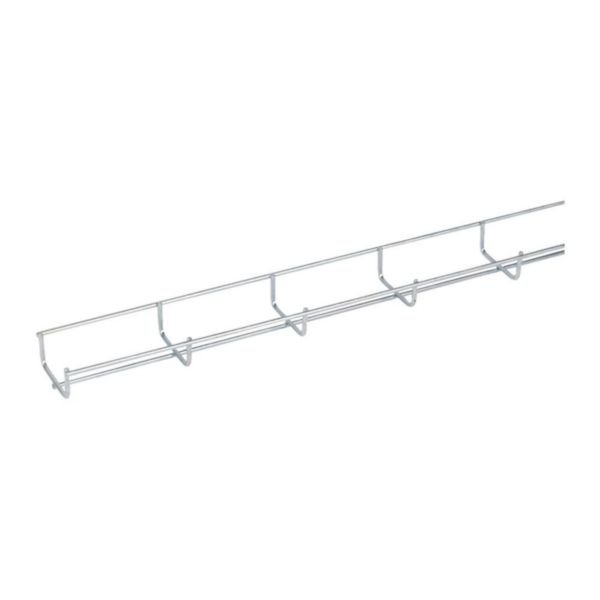

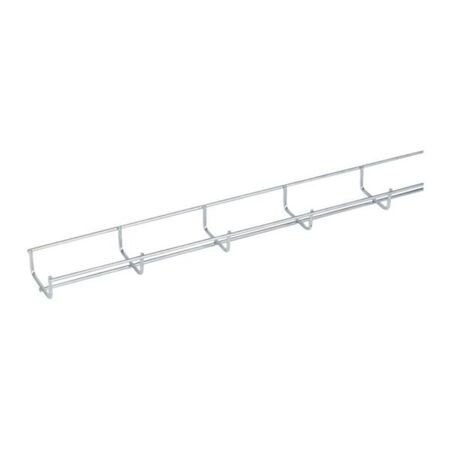

304L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for robust cable management, featuring a U-shaped profile and excellent corrosion resistance. Ideal for industrial and commercial applications, this tray ensures natural ventilation to enhance cable efficiency while complying with local electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000018
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Tray 304L, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 50 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 1308 mm²
- Surface protection: Pickled and passivated
- Weight: Approximately 0.38 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 30mm x 3000mm x 50mm
- Weight: 1.15 kg
Key Features
- Made from high-quality 304L stainless steel for excellent corrosion resistance
- U-shaped profile for robust cable support
- Natural ventilation design enhances cable efficiency
- Pickled and passivated surface protection for durability
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with local electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating, improving energy efficiency of cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 50mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
