304L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil

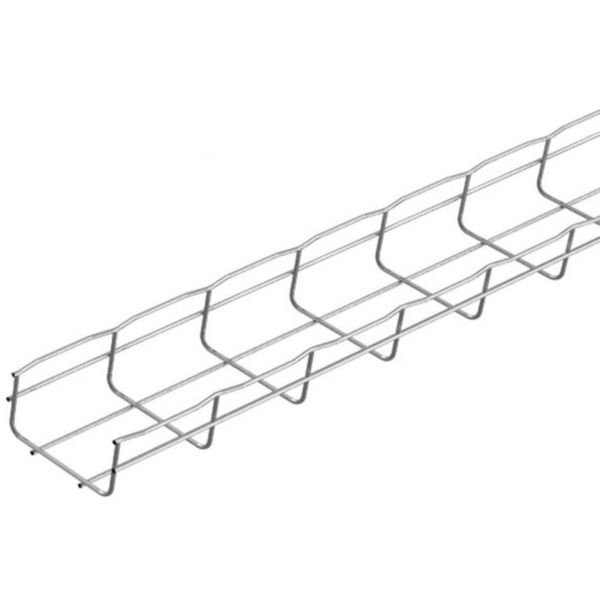

The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a robust U-shape profile and a pickled and passivated surface for enhanced corrosion resistance, this tray ensures natural ventilation for optimal cable performance. Ideal for data centers, server rooms, and electrical installations, it supports compliance with AS/NZS 3000 wiring standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000078
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Tray 304L, Wire Mesh Cable Tray, U-Shape Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 5143 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Weight: 0.7559 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- No integrated partition
- Model: Without connector
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 100mm
- Weight: 2.27 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Made from high-quality stainless steel 304L (1.4301)
- Pickled and passivated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified electricians or cable management specialists is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 100mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
