304L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | Pickled & Passivated | @Each of 1 | by Cablofil

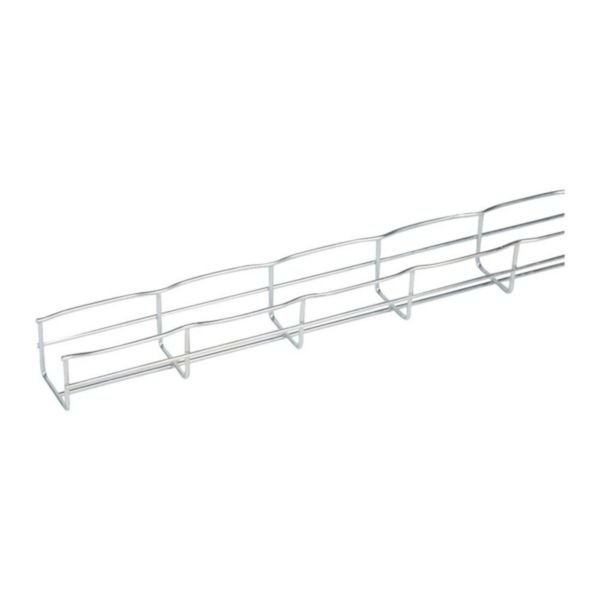

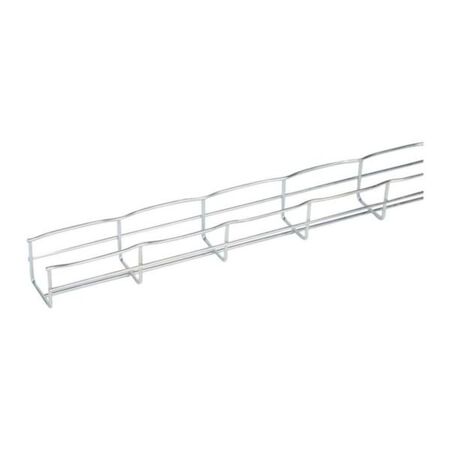

The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and a corrosion-resistant stainless steel construction. Ideal for commercial and infrastructure wiring installations, it ensures natural ventilation for greater cable efficiency and safety with its unique T-welded edge. Perfect for environments requiring durable and reliable cable trays.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000068
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 50x54mm, Wire Cable Tray 3m Length
Technical Specifications
- Profile shape: U-shape
- Width: 50 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 2558 mm²
- Material: Stainless steel 304 (1.4301)
- Surface protection: Pickled and passivated
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Weight: 0.613 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 50mm
- Weight: 1.84 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 50mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
