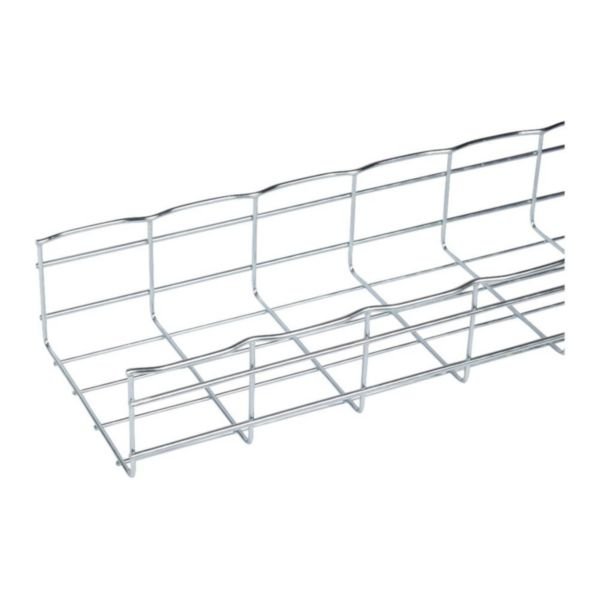

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | 200mm x 105mm | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a U-shape profile and a pickled and passivated surface for corrosion resistance, it ensures optimal cable support and natural ventilation. Ideal for data centers and electrical installations, this tray combines durability with functionality, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | 200mm x 105mm | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000918
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 3m Length, Wire Cable Tray 200x105mm, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 21000 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Weight: 1.7145 kg/m
- Dimensions (H x L x W): 105mm x 3000mm x 200mm
- Weight: 5.14 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for optimal cable support
- Pickled and passivated surface for corrosion resistance
- Made from high-quality stainless steel 304L (1.4301)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 200mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
