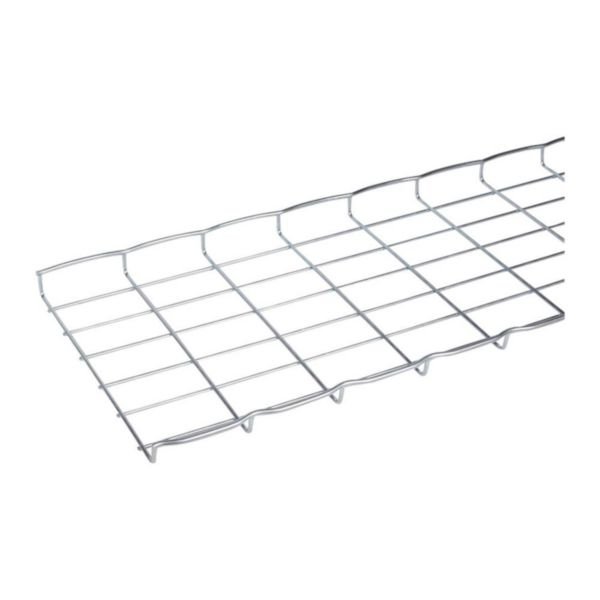

304L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated | 300mm Width | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a U-shape profile and pickled and passivated surface for enhanced durability, it ensures secure cable support and natural ventilation to prevent overheating. Ideal for data centers and infrastructure wiring, this tray is built to last and comply with structural design standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated | 300mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000058
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Steel Wire Cable Tray 304L
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 300 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 7953 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Weight: Approximately 1.36 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 300mm
- Weight: 4.1 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for secure cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Outdoor and indoor cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 300mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
