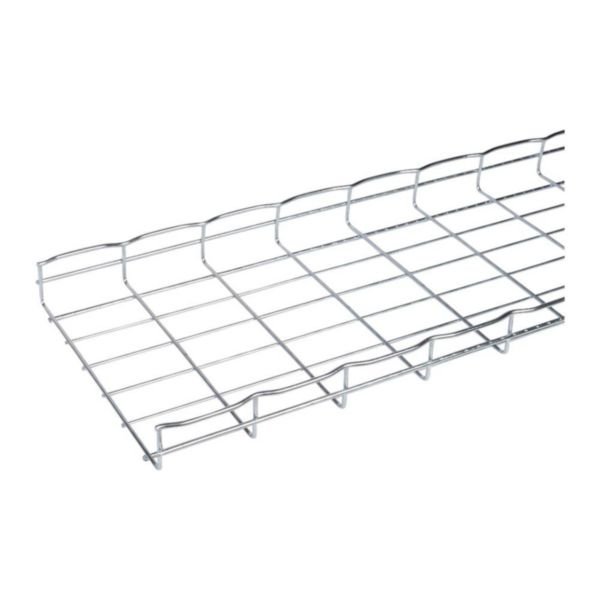

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced corrosion resistance. Ideal for commercial wiring and data centers, this tray supports operating temperatures from -20°C to 120°C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000108
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 300mm x 54mm, Wire Cable Tray 3m Length, SS304 Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 300 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 15453 mm²
- Surface protection: Pickled and passivated
- Weight: 1.7145 kg/m
- Operating temperature range: -20°C to 120°C
- Storage temperature range: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 300mm
- Weight: 5.14 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Suitable for operating temperatures from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 300mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
