Trade Discount 20%

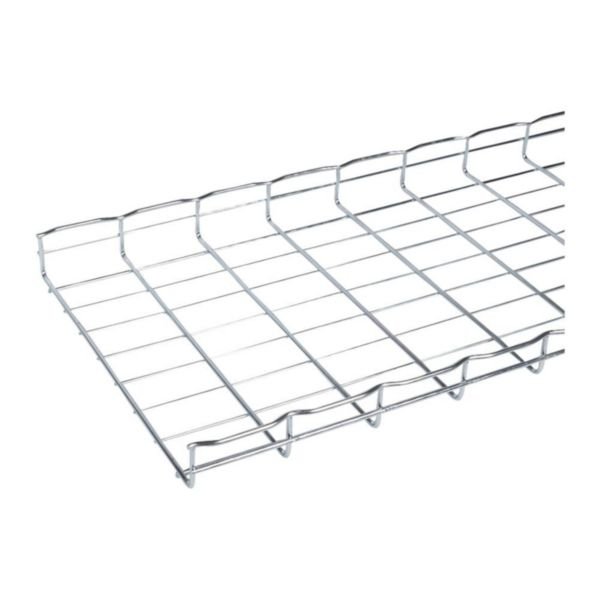

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced corrosion resistance. Ideal for commercial and infrastructure wiring installations, this cable tray supports operating temperatures from -20°C to 120°C, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000208
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 400x54mm, 3m Cable Tray, Wire Cable Tray 304L
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 400 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 20613 mm²
- Surface protection: Pickled and passivated
- Weight: 2.295734 kg/m
- Operating temperature range: -20°C to 120°C
- Storage temperature range: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 400mm
- Weight: 6.9 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Suitable for operating temperatures from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support, secure fixing, and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing replacement frequency
- Natural ventilation design reduces overheating and energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty terms.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 400mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
