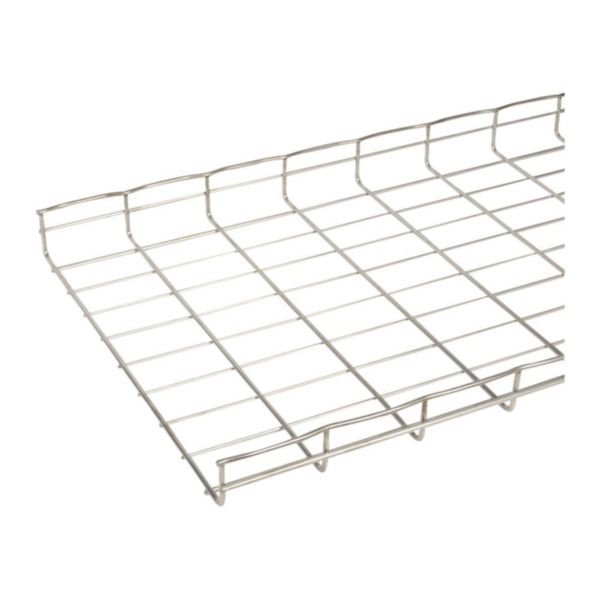

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced durability. Ideal for commercial wiring and data centers, this cable tray ensures natural ventilation for optimal cable performance while providing a unique T-welded safety edge to protect both cables and installers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000258
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 450mm x 54mm, Wire Cable Tray 3m Length
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 450 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 22968 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Weight: Approximately 2.83 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 450mm
- Weight: 8.5 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for robust cable support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and structural mounting to ensure safety and compliance.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and telecommunication cable routing
- Marine and offshore cable installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 450mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
