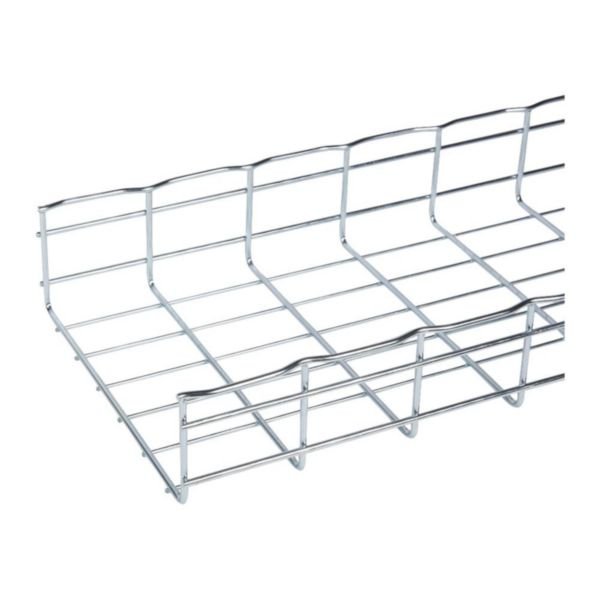

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a U-shape profile and pickled and passivated surface, it offers excellent corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and electrical installations, this durable tray ensures safety and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000928
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Steel Wire Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Surface Protection: Pickled and passivated
- Profile Shape: U-shape
- Width: 300 mm
- Height: 105 mm
- Length: 3000 mm
- Usable Cross Section: 31500 mm²
- Weight: 2.295734 kg/m
- Operating Temperature: -20°C to 120°C
- Storage Temperature: -20°C to 120°C
- Model: Without connector
- Integrated Partition: None
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 105mm x 3000mm x 300mm
- Weight: 6.9 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for optimal cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management in compliance with safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing the need for frequent replacements
- Natural ventilation design reduces overheating and energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 300mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
