Trade Discount 20%

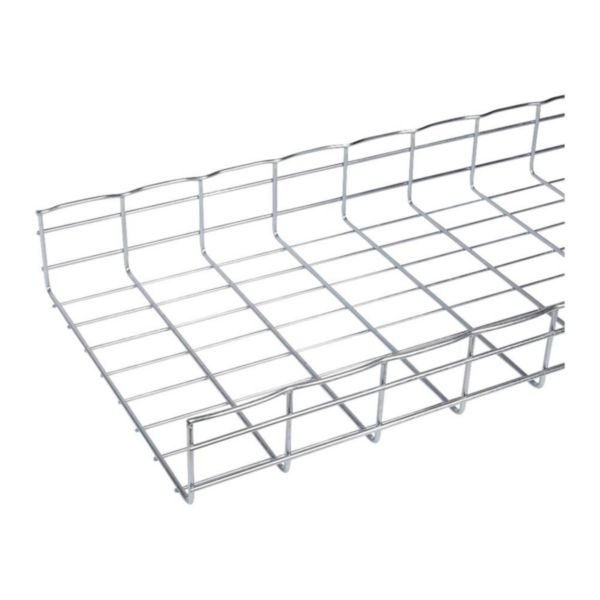

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced corrosion resistance. Ideal for commercial and infrastructure wiring installations, this cable tray supports natural ventilation to improve cable efficiency, making it perfect for data centers and environments requiring durable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000938
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 304L, Wire Cable Tray 400x105mm, Stainless Steel Cable Tray 3m
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 400 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 42000 mm²
- Surface protection: Pickled and passivated
- Weight: Approximately 3.02 kg per meter
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- No integrated partition
- Model: Without connector
- Not suitable for circuit integrity
- Dimensions (H x L x W): 105mm x 3000mm x 400mm
- Weight: 9.1 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing replacement frequency
- Natural ventilation design reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 400mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
