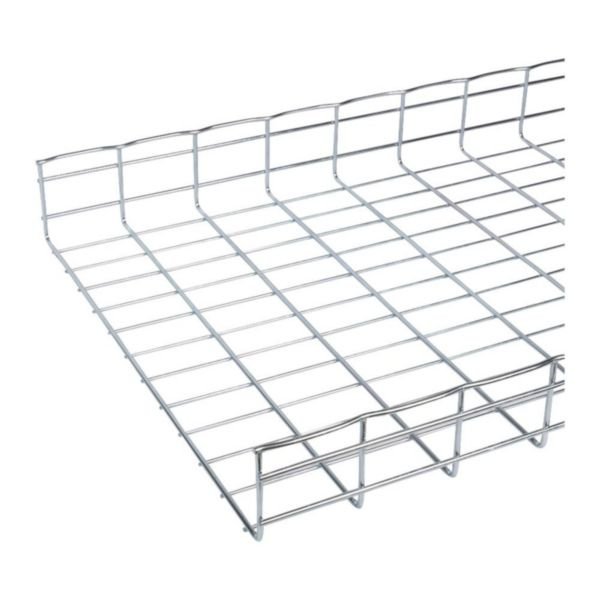

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and a pickled and passivated surface for enhanced corrosion resistance. Ideal for commercial and infrastructure wiring, this durable tray supports optimal cable ventilation and is perfect for data centers and electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 600 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 63000 mm²
- Surface protection: Pickled and passivated
- Weight: 3.78 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 105mm x 3000mm x 600mm
- Weight: 11.35 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for optimal cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and electrical standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring
- Data centers and electrical installations requiring corrosion resistance
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing replacement frequency
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 600mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
