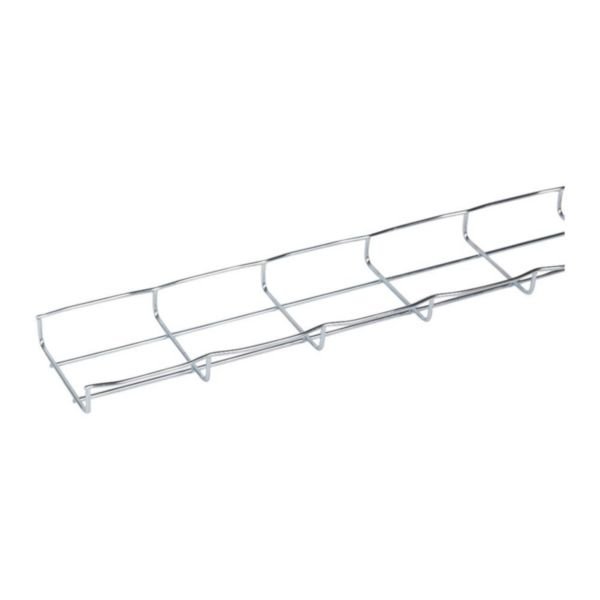

304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a robust U-shape profile and a unique T-welded safety edge, it ensures secure cable support while providing natural ventilation to prevent overheating. Ideal for data centers and wiring installations, this tray is built from high-quality stainless steel 304L for enhanced durability and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000028
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Tray 304L, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 2643 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Weight: 0.5206 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 100mm
- Weight: 1.56 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 304L (1.4301)
- Pickled and passivated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Outdoor and indoor cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces cable overheating, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 100mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
