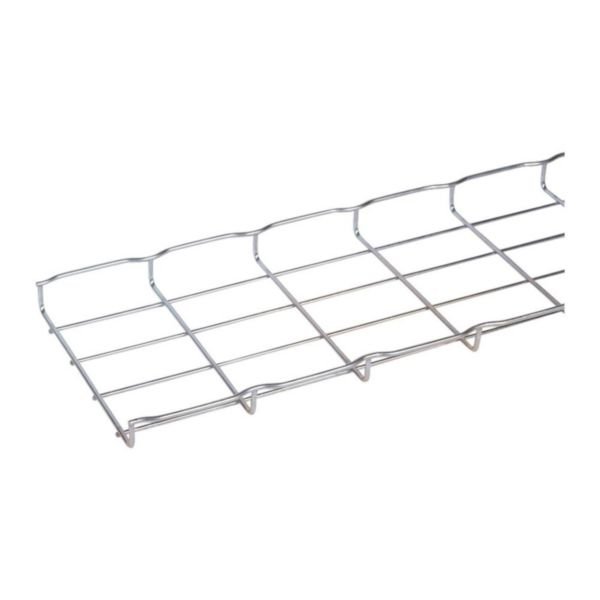

304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a unique T-welded safety edge that protects both cables and installers. Ideal for commercial wiring and data centers, this tray ensures natural ventilation for optimal cable performance and is built from high-quality stainless steel for long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000048
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Tray 200x30mm, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 200 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 5293 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Weight: 0.9197 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 200mm
- Weight: 2.76 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated surface for corrosion resistance
- Made from high-quality stainless steel 304L (1.4301)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 200mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
