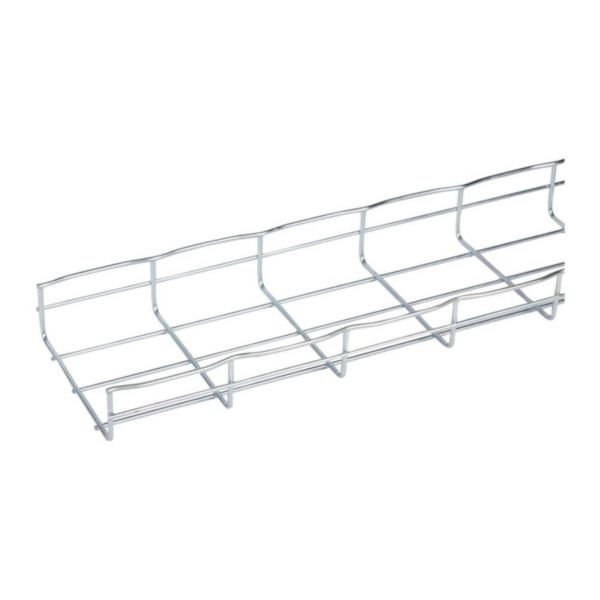

304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a unique T-welded safety edge that protects both cables and installers. With a pickled and passivated surface for enhanced corrosion resistance, this cable tray is perfect for commercial electrical installations and data centers, ensuring durability and natural ventilation for optimal cable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000088
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 150x54mm, Wire Cable Tray 3m Length, Stainless Steel Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 150 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 7728 mm²
- Surface protection: Pickled and passivated
- Weight: Approximately 0.9 kg per meter
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 150mm
- Weight: 2.7 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and electrical safety standards to ensure secure and compliant installation.
Applications
- Industrial cable management
- Commercial electrical installations
- Data centers and telecommunication wiring
- Infrastructure and construction projects requiring durable cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing replacement frequency
- Natural ventilation design reduces overheating and energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 150mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
