304L Stainless Steel Wire Cable Tray | U-Shape Profile | Unique T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil

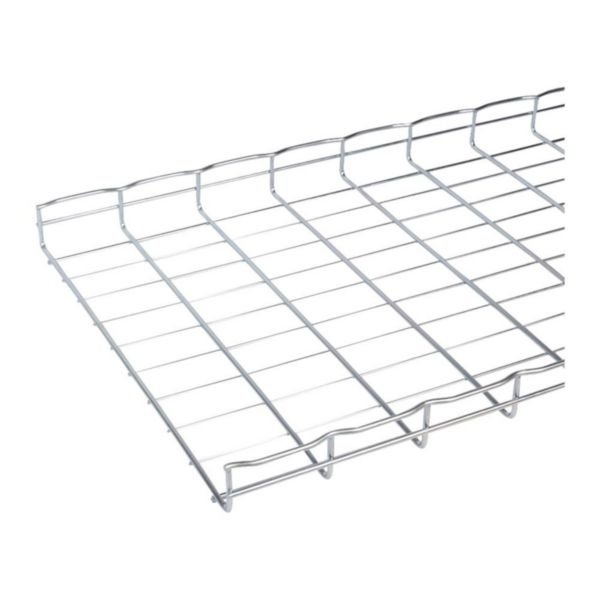

The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and a unique T-welded safety edge that protects both cables and installers. With a pickled and passivated surface for enhanced corrosion resistance, this tray is perfect for both indoor and outdoor applications, ensuring reliable performance in data centers and commercial wiring installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Unique T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000308
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Industrial Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 500 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 25523 mm²
- Surface protection: Pickled and passivated
- Weight: 3.021 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 500mm
- Weight: 9.1 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated stainless steel surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Outdoor and indoor cable protection
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 304L which is recyclable and durable, reducing replacement frequency
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 500mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
