304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Pickled & Passivated | @Each of 1 | by Cablofil

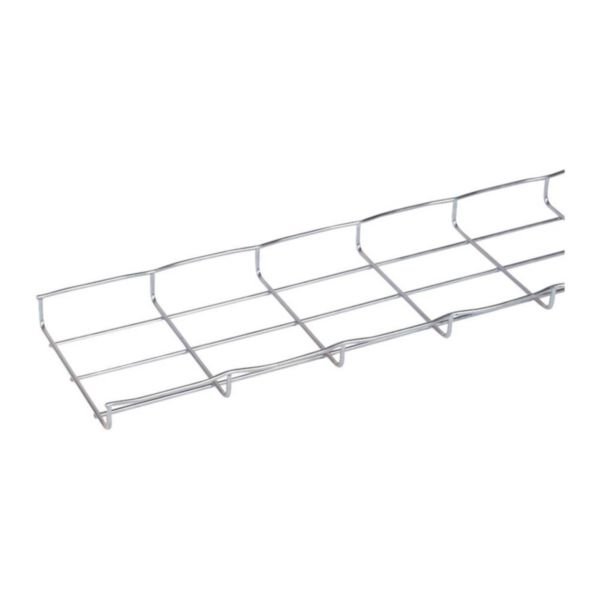

The 304L Stainless Steel Wire Cable Tray is designed for robust cable management, featuring a U-shape profile and a unique T-welded safety edge that protects both cables and installers. Ideal for industrial and commercial applications, this tray ensures natural ventilation for greater cable efficiency and is built to withstand operating temperatures from -20°C to 120°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000038
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Management Tray, Cable Tray 150x30mm, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 3978 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Operating temperature: -20°C to 120°C
- Weight: 0.663 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 150mm
- Weight: 2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Made from high-quality stainless steel 304L (1.4301)
- Pickled and passivated surface protection for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management in compliance with safety standards.
Applications
- Industrial cable management
- Commercial electrical installations
- Data centers and telecommunication wiring
- Infrastructure and construction projects requiring durable cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable stainless steel material
- Durable construction reduces need for frequent replacements
- Natural ventilation reduces energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 150mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
