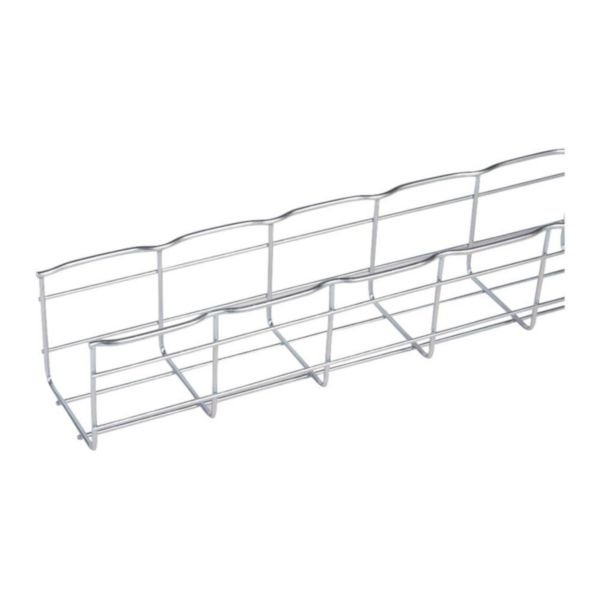

304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Pickled & Passivated | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and a unique T-welded safety edge that protects both cables and installers. With a pickled and passivated surface for enhanced durability, this cable tray is perfect for commercial wiring installations and data centers, ensuring optimal cable support and natural ventilation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000898
Alternatively Known As: Stainless Steel Wire Mesh Cable Tray, Cable Tray 304L, Wire Cable Tray 3m Length, Stainless Steel Cable Tray
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 100 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 10500 mm²
- Surface protection: Pickled and passivated
- Weight: Approximately 3.5 kg per 3m length
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 105mm x 3000mm x 100mm
- Weight: 3.5 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for optimal cable support
- Made from high-quality stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection for durability
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Data centers and electrical wiring routing
- Outdoor and indoor cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 100mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
