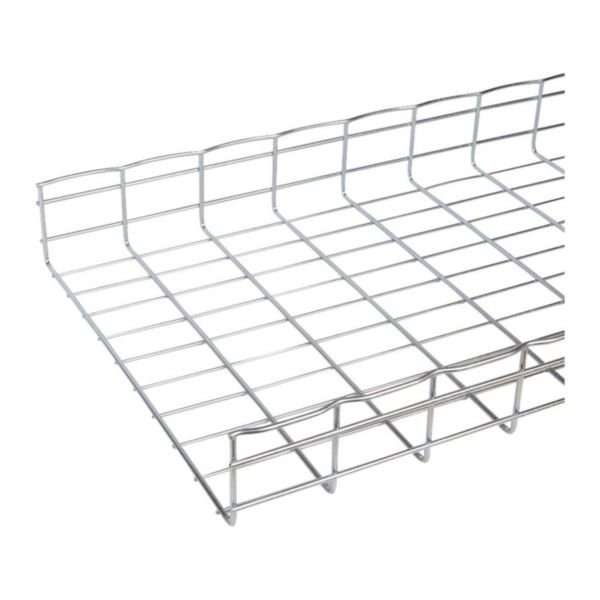

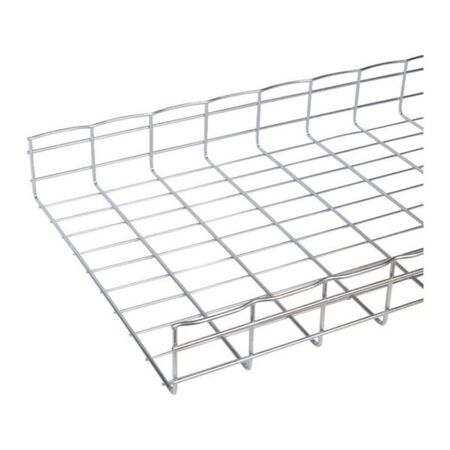

304L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Pickled & Passivated | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a U-shape profile and unique T-welded safety edge, it ensures optimal cable support and protection. With pickled and passivated surface protection, this tray offers excellent corrosion resistance, making it ideal for data centers, server rooms, and electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel 304L (1.4301)
- Profile shape: U-shape
- Width: 500 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 52500 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Weight: 3.4 kg per meter
- Dimensions (H x L x W): 105mm x 3000mm x 500mm
- Weight: 10.2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 304L for corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for optimal cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and structural standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating, improving energy efficiency of cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 500mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
