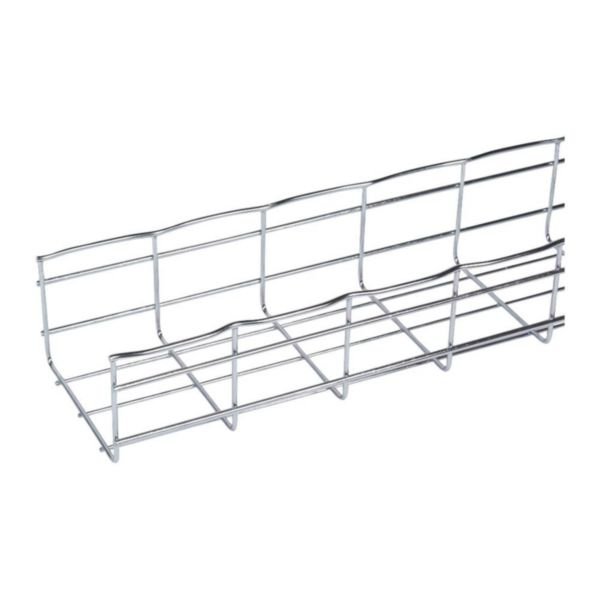

304L Stainless Steel Wire Cable Tray | U-Shape Profile | Unique T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
The 304L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a robust U-shape profile and a unique T-welded safety edge, it ensures secure cable support while providing natural ventilation to prevent overheating. Ideal for data centers and electrical installations, this tray is built from durable stainless steel for long-lasting performance and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 304L Stainless Steel Wire Cable Tray | U-Shape Profile | Unique T-Welded Safety Edge | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000908
Alternatively Known As: Stainless Steel Wire Cable Tray, Cable Tray 150x105mm, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 15750 mm²
- Material: Stainless steel 304L (1.4301)
- Surface protection: Pickled and passivated
- Operating temperature: -20°C to 120°C
- Weight: Approximately 1.32 kg per meter
- Dimensions (H x L x W): 105mm x 3000mm x 150mm
- Weight: 4 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Made from stainless steel 304L with pickled and passivated surface for corrosion resistance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Electrical installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 304L Stainless Steel Wire Cable Tray 150mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
