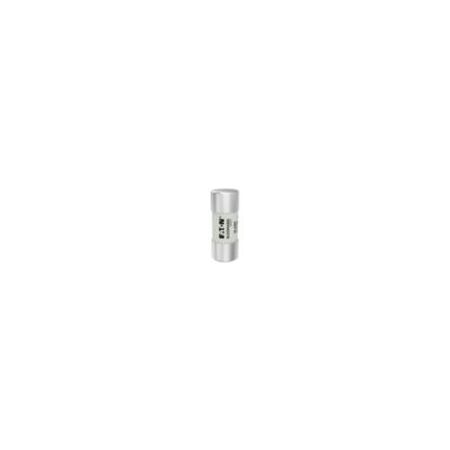

30A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | Ferrule End by Eaton
30A 415V AC house service fuse with a 33 kA breaking capacity and gG/gL class for general purpose protection—ideal for residential and commercial electrical installations. Built for safety and compliance, this fuse ensures reliable overload and short circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | Ferrule End by Eaton
Brand: Eaton
SKU: 30KR85
Alternatively Known As: 30 Amp Fuse, 415V AC Fuse, Low Voltage Fuse, British Standard Fuse, KR85 Fuse
Technical Specifications
- Amperage Rating: 30 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 33 kA
- Fuse Type: KR85
- Class: gG/gL
- Construction: BS system C type II
- Dimensions: 57 mm length x 22.2 mm width x 22.2 mm height
- Weight: 57.1 g
- Dimensions (H x L x W): 22.2mm x 57mm x 22.2mm
- Weight: 0.0571 kg
Key Features
- 30 Ampere current rating
- 415 Volt AC voltage rating
- Breaking capacity of 33 kA
- Class gG/gL fuse type for general purpose protection
- Ferrule end x ferrule end construction
- BS system C type II construction
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Low voltage electrical protection in residential and commercial electrical installations
- Protection of electrical circuits and equipment from overload and short circuit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 30A 415V AC House Service Fuse is available for immediate purchase, ideal for residential and commercial electrical protection applications.
