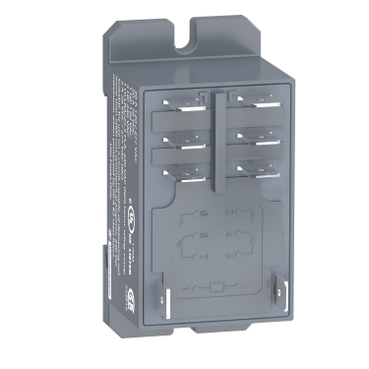

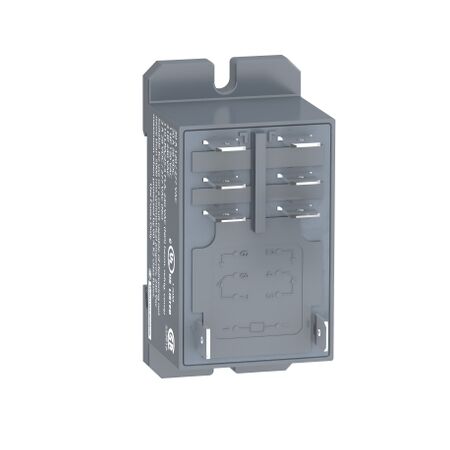

30A Power Relay 2C/O 12VDC | 30A Switching Capacity | Electromechanical Design | DIN Rail or Panel Mount | @1 | by Clipsal
The 30A Power Relay 2C/O 12VDC is designed for heavy-duty applications, featuring a robust 30A switching capacity and versatile 2 changeover contacts. Ideal for industrial automation, HVAC control, and lighting circuits, this relay ensures reliable performance with a long mechanical life of 10 million operations, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30A Power Relay 2C/O 12VDC | 30A Switching Capacity | Electromechanical Design | DIN Rail or Panel Mount | @1 | by Clipsal
Brand: Clipsal
SKU: SCHRPF2BJD
Alternatively Known As: 30A relay, 2CO relay, 12VDC power relay, Clipsal power relay, Harmony relay, industrial relay, SCHRPF2BJD relay
Technical Specifications
- Contact configuration: 2C/O (DPDT)
- Contact rating: 30A at 250V AC / 30V DC
- Coil voltage: 12V DC
- Mounting: DIN rail or panel mount
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Operating temperature: -40°C to +70°C
- Insulation resistance: 1000 MΩ min (at 500V DC)
- Dielectric strength: 4000V AC between coil and contacts
- Dimensions (H x L x W): 54mm x 28mm x 35mm
- Weight: 0.12 kg
Key Features
- 30A switching capacity for heavy-duty applications
- 2 changeover (2C/O) contacts for versatile control
- 12V DC coil voltage for low voltage operation
- Electromechanical relay for reliable switching
- DIN rail or panel mounting options
- Part of the Harmony range for robust industrial use
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation systems
- HVAC control panels
- Lighting control circuits
- Motor control
- Building management systems
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of high-power circuits, reducing energy waste through precise switching.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 30A Power Relay 2C/O 12VDC (SCHRPF2BJD) is available for immediate purchase. Ideal for industrial automation, HVAC, and high-power switching applications.
