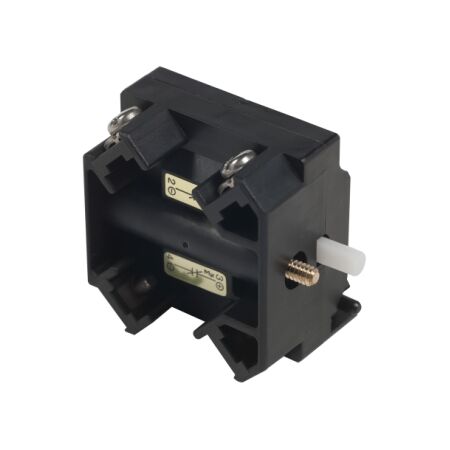

30mm Contact Block 1NO/1NC Log | 600V AC | 10A Rated Current | Robust Construction | @Pack of 1 | by Clipsal
The 30mm Contact Block 1NO/1NC Log is designed for reliable operation in industrial control panels and automation systems. With a robust construction, it features a 1 Normally Open and 1 Normally Closed contact configuration, rated for 600V AC and 10A. Ideal for machinery control stations, this contact block ensures durability and compliance with safety standards, making it a perfect choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30mm Contact Block 1NO/1NC Log | 600V AC | 10A Rated Current | Robust Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH9001KA41
Alternatively Known As: Clipsal SCH9001KA41, 30mm Contact Block, 1NO 1NC Contact Block, Industrial Contact Block, Clipsal Control Block
Technical Specifications
- Contact configuration: 1NO + 1NC
- Mounting: 30mm diameter panel cutout
- Rated operational voltage: 600V AC max
- Rated operational current: 10A
- Mechanical life: 5,000,000 operations
- Connection type: Screw clamp terminals
- Operating temperature: -25°C to +70°C
- Material: High-impact plastic and metal contacts
- Dimensions (H x L x W): 40mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- 30mm diameter contact block
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration
- Robust construction for industrial environments
- Easy snap-on mounting
- Compatible with 9001 series operators
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct operation.
Applications
- Industrial control panels
- Machinery control stations
- Automation systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy waste in industrial systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 30mm Contact Block 1NO/1NC Log SCH9001KA41 is available for immediate purchase. Ideal for industrial control panels and automation systems.
