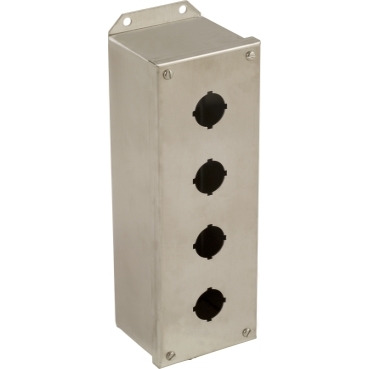

30mm Control Station 4 Hole | Stainless Steel | IP66 Rated | Surface Mount | @Pack of 1 | by Clipsal
The 30mm Control Station 4 Hole is a durable stainless steel enclosure designed for custom configurations in industrial control applications. With four 30mm cut-outs for push buttons or pilot devices and an IP66 rating, it offers excellent protection against dust and water ingress. Ideal for harsh environments, this control station is perfect for machinery control, automation systems, and manufacturing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30mm Control Station 4 Hole | Stainless Steel | IP66 Rated | Surface Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH9001KYSS4
Alternatively Known As: 4 Hole Control Station, 30mm Push Button Enclosure, Harmony 9001KYSS4, Stainless Steel Control Box, Clipsal 4 Hole Control Enclosure
Technical Specifications
- Material: Stainless steel
- Number of holes: 4
- Hole diameter: 30mm
- Ingress protection: IP66
- Compatibility: Harmony 9001K, 9001SK series
- Mounting: Surface mount
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 250mm x 80mm x 90mm
- Weight: 1.2 kg
Key Features
- Empty enclosure control station for custom configurations
- 4 x 30mm diameter cut-outs for push buttons or pilot devices
- Constructed from durable stainless steel for corrosion resistance
- Compatible with Harmony 9001K and 9001SK series operators
- IP66 rated for protection against dust and water ingress
- Suitable for harsh industrial environments
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery control stations
- Manufacturing plants
- Automation systems
- Process control environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Reusable enclosure reduces waste from frequent replacements
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 30mm Control Station 4 Hole STA SCH9001KYSS4 is available for immediate purchase. Ideal for industrial and automation control applications.
